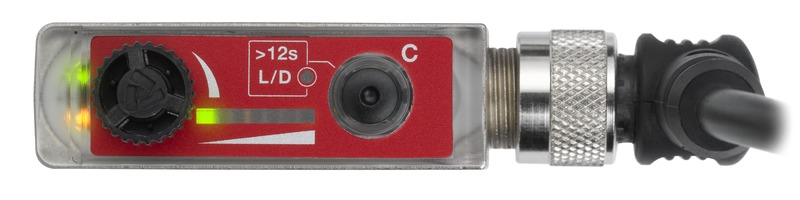

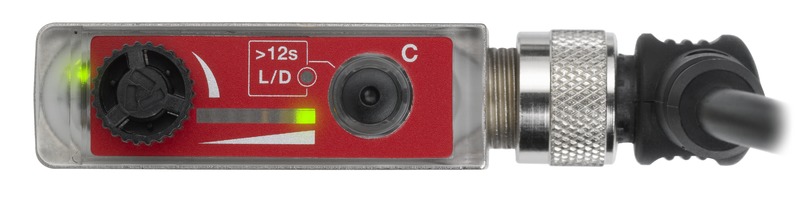

KRT18BM.H2/GCT-M12

Contrast sensor

Part no.: 50132612

SEK 3,878.28*

Delivery to be confirmed

Icon Icon Icon Icon Icon
Series 18B
Operating range Guaranteed operating range
Operating range 0.01 ... 0.016 m
Beam path Focused
Light source LED, RGB
Light spot size [at sensor distance] 1 mm x 4 mm
Light spot orientation Horizontal
Type of light spot geometry Rectangular
Light beam exit Front
Focus Fixed
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 12 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 25 mA
Number of digital switching inputs 1 Piece(s)
Voltage type DC
Function Light/dark switching, Color changeover, Keyboard lockout
Number of analog outputs 1 Piece(s)
Number of digital switching outputs 1 Piece(s)
Type Analog output
Current 4 ... 20 mA
Type Current
Voltage type DC
Switching voltage high: ≥(UB-2V), low: ≤ 2 V
Switching element Transistor, Push-pull
Switching principle Light/dark reversible
Switching frequency 15,000 Hz
Response time 0.033 ms
Readiness delay 300 ms
Function Voltage supply, Signal IN, Signal OUT
Type of connection Connector
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding A-coded
Design Cubic
Dimension (W x H x L) 15 mm x 47 mm x 32.5 mm
Housing material Metal
Metal housing Diecast zinc
Lens cover material Plastic / PMMA
Net weight 60 g
Housing color Silver
Type of fastening Through-hole mounting, Front mounting with thread, Via optional mounting device
Compatibility of materials ECOLAB
Type of display Bar graph, LED
Number of LEDs 2 Piece(s)
Operational controls Multiturn potentiometer
Function of the operational control Sensitivity adjustment, Color changeover, Light/dark switching
Ambient temperature, operation -40 ... 60 °C
Ambient temperature, storage -40 ... 70 °C
Degree of protection IP 67, IP 69K
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270906
ECLASS 8.0 27270906
ECLASS 9.0 27270906
ECLASS 10.0 27270906
ECLASS 11.0 27270906
ECLASS 12.0 27270906
ETIM 5.0 EC001820
ETIM 6.0 EC001820
ETIM 7.0 EC001820
