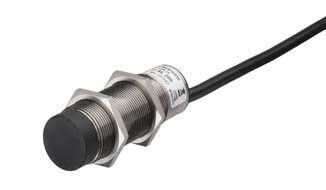

RFM 12 SL 200

RFID read/write device

Part no.: 50040497

Icon Icon
Series RFM
Working frequency 13.56 MHz
Functions Configurable operating modes, I/O, Reading gate control
Reading/writing range, max. 45 mm
Transponder, readable ICodeSLI, Infineon MyD, TagIT HFI
Supply voltage UB 12 ... 30 V, DC
Power consumption, max. 1 W
Memory access Read/Write
Transmission speed 4,000 Bd
Number of digital switching inputs 1 Piece(s)
Number of digital switching outputs 1 Piece(s)
Type RS 232
Function Process
Number of connections 1 Piece(s)
Function Signal OUT, Data interface, Signal IN, Voltage supply
Type of connection Cable with socket connectors (10+6)
Cable length 1,000 mm
Design Cylindrical
Thread size M30

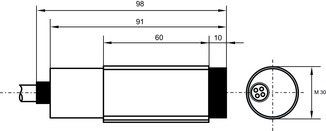

Dimension 98 mm
Housing material Plastic, Metal
Net weight 271 g
Housing color Black, Silver
Type of fastening Mounting thread
Ambient temperature, operation -25 ... 65 °C
Ambient temperature, storage -40 ... 70 °C
Relative humidity (non-condensing) 5 ... 90 %
Degree of protection IP 67
Customs tariff number 84719000
ECLASS 5.1.4 27280401
ECLASS 8.0 27280401
ECLASS 9.0 27280401
ECLASS 10.0 27280401
ECLASS 11.0 27280401
ETIM 5.0 EC001825
ETIM 6.0 EC002998
ETIM 7.0 EC002998
