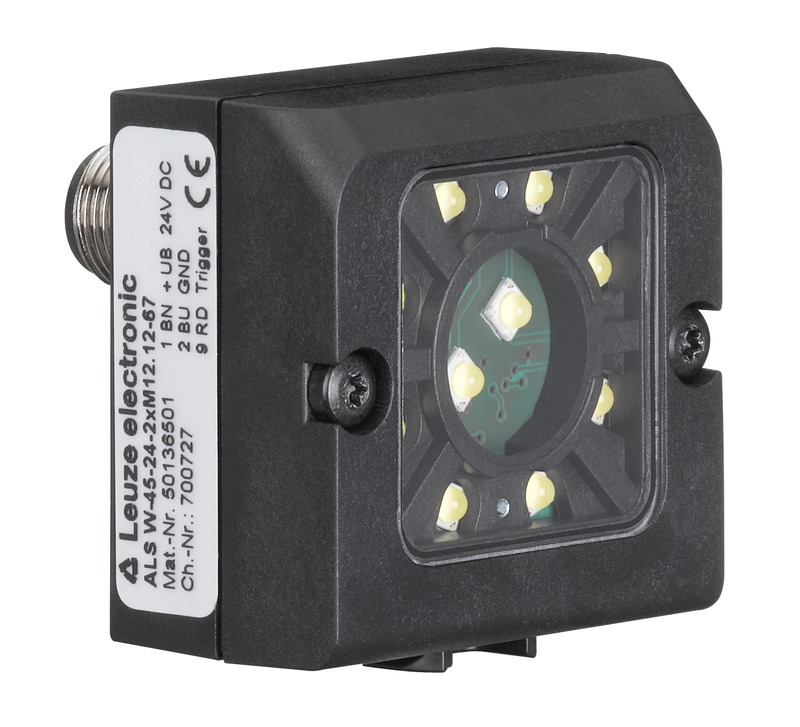

ALS W-45-24-2xM12.12-67
Illumination
Part no.:
50136501
Follow-up article
Hello, we'd be happy to be of assistance to you.
Hello, we'd be happy to be of assistance to you.
We'd be happy to help you in finding a suitable alternative quickly and easily.
Please contact us via: Contact
| Suitable for | ACR 300i |
| Light source | LED, White / red, red or infrared |
| Protective circuit | Polarity reversal protection |
| Supply voltage UB | 24 V, DC, 10 % |
| Residual ripple | 0 ... 10 %, From UB |
| Number of connections | 2 Piece(s) |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 12 -pin |
| Encoding | A-coded |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 12 -pin |
| Encoding | A-coded |
| Design | Cubic |
| Dimension (W x H x L) | 45 mm x 43 mm x 24 mm |
| Housing material | Plastic |
| Net weight | 60 g |
| Housing color | Black |
| Ambient temperature, operation | 0 ... 50 °C |
| Ambient temperature, storage | -20 ... 60 °C |
| Illumination | Diffuse |
| Degree of protection | IP 65 IP 67 |
| Customs tariff number | 85318070 |
| ECLASS 5.1.4 | 27110635 |
| ECLASS 8.0 | 27110635 |
| ECLASS 9.0 | 27110635 |
| ECLASS 10.0 | 27110635 |
| ECLASS 11.0 | 27110635 |
| ECLASS 12.0 | 27110635 |
| ECLASS 13.0 | 27110635 |
| ECLASS 14.0 | 27110635 |
| ETIM 5.0 | EC000996 |
| ETIM 6.0 | EC000996 |
| ETIM 7.0 | EC000996 |
| ETIM 8.0 | EC000996 |
| ETIM 9.0 | EC000996 |
