AMS 304i 120 H

Optical distance sensor

Part no.: 50113682

Compare

Series	AMS 300i
Application	Collision protection of cranes / gantry cranes Positioning of electroplating plants Positioning of skillet systems and side-tracking skates Positioning of stacker cranes
Order guide	Reflective tape must be ordered separately

Special version

Heating

Light source	Laser, Red
Laser class	2, IEC/EN 60825-1:2014
Light spot size [at sensor distance]	100 mm [120,000 mm]

Measurement value calculation time	8 ms
Measurement range	200 ... 120,000 mm
Resolution	0.001 ... 10 mm
Accuracy	2 mm
Reproducibility (3 sigma)	1.5 mm
Measurement value output	1.7 ms
Max. traverse rate	10 m/s

Supply voltage U_B

18 ... 30 V, DC

Type	PROFIBUS DP, SSI

Transmission speed

0.0096 ... 12 Mbit/s

Clock frequency

50 ... 800 kHz

Type of connection	Connector
Designation on device	BUS IN
Thread size	M12
Material	Metal
No. of pins	5 -pin

Function	BUS OUT Data interface PROFIBUS OUT
Type of connection	Connector
Designation on device	BUS OUT
Thread size	M12
Type	Female
No. of pins	5 -pin
Encoding	B-coded

Function	PWR / SW IN / OUT Voltage supply
Type of connection	Connector
Designation on device	PWR
Thread size	M12
Type	Male
No. of pins	5 -pin
Encoding	A-coded

Function	Service interface
Type of connection	Connector
Designation on device	SERVICE
Thread size	M12
Type	Female
No. of pins	5 -pin
Encoding	A-coded

Function	Data interface SSI
Type of connection	Connector
Designation on device	SSI
Thread size	M12
Type	Male
No. of pins	5 -pin
Encoding	B-coded

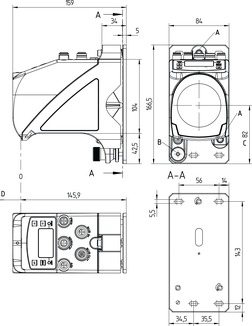

Dimension (W x H x L)	84 mm x 166.5 mm x 159 mm
Housing material	Metal
Metal housing	Diecast zinc/aluminum
Lens cover material	Glass
Net weight	2,450 g

Operational controls

Membrane keyboard

Ambient temperature, operation	-30 ... 50 °C
Ambient temperature, storage	-30 ... 70 °C
Relative humidity (non-condensing)	90 %

Degree of protection	IP 65
Protection class	III
Certifications	c UL US

Customs tariff number	90318020
ECLASS 5.1.4	27270801
ECLASS 8.0	27270801
ECLASS 9.0	27270801
ECLASS 10.0	27270801
ECLASS 11.0	27270801
ECLASS 12.0	27270916
ECLASS 13.0	27270916
ETIM 5.0	EC001825
ETIM 6.0	EC001825
ETIM 7.0	EC001825
ETIM 8.0	EC001825

Results list: 17 products found

KB SSI/IBS-10000-BA

Connection cable

Part no.: 50104170

Interface: SSI
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50104170

Compare

KB SSI/IBS-15000-BA

Connection cable

Part no.: 50104169

Interface: SSI
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50104169

Compare

KB SSI/IBS-2000-BA

Connection cable

Part no.: 50104172

Interface: SSI
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50104172

Compare

KB SSI/IBS-30000-BA

Connection cable

Part no.: 50108446

Interface: SSI
Connection: Connector, M12
Version: Female
No. of pins: 5 Piece(s)

Part no.: 50108446

Compare

KB SSI/IBS-5000-BA

Connection cable

Part no.: 50104171

Interface: SSI
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50104171

Compare

KD PB-M12-4A-P3-050

Connection cable

Part no.: 50135243

Interface: PROFIBUS DP
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50135243

Compare

KD PB-M12-4A-P3-100

Connection cable

Part no.: 50135244

Interface: PROFIBUS DP
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50135244

Compare

KD PB-M12-4A-P3-150

Connection cable

Part no.: 50135245

Interface: PROFIBUS DP
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50135245

Compare

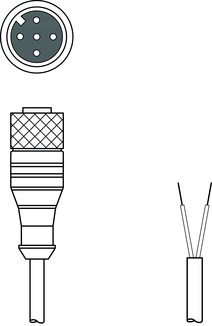

KD PB-M12-4A-P3-300

Connection cable

Part no.: 50135246

Interface: PROFIBUS DP
Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)

Part no.: 50135246

Compare

KD U-M12-5A-V1-020

Connection cable

Part no.: 50132077

Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)
Cable length: 2,000 mm

Part no.: 50132077

Compare

KD U-M12-5A-V1-050

Connection cable

Part no.: 50132079

Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)
Cable length: 5,000 mm

Part no.: 50132079

Compare

KD U-M12-5A-V1-100

Connection cable

Part no.: 50132080

Connection: Connector, M12
Version: Axial, Female
No. of pins: 5 Piece(s)
Cable length: 10,000 mm

Part no.: 50132080

Compare

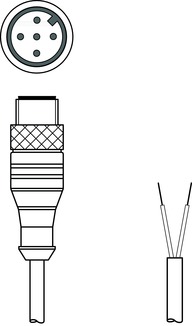

KS PB-M12-4A-P3-020
