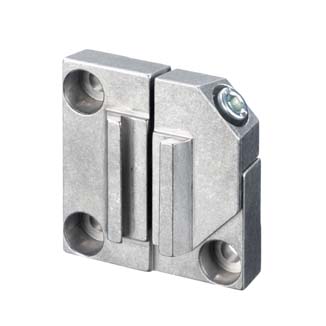

BTU 0300M-W

Mounting device

Part no.: 50124941

SEK 961.20*

Available immediately

86 currently available

Suitable for product group Bar code positioning systems
Suitable for BPS 300i series bar code positioning system
Design Cubic
Dimension (W x H x L) 55 mm x 57 mm x 14 mm
Standard designation, metal mounting device Aluminum
Net weight 115 g
Housing color Silver
Type of fastening, at system Through-hole mounting
Type of fastening, at device Clampable, Groove mounting, Suited for M4 screws
Mounting device material Metal
Shock absorber No
Customs tariff number 73182900
ECLASS 5.1.4 27279202
ECLASS 8.0 27279202
ECLASS 9.0 27273701
ECLASS 10.0 27273701
ECLASS 11.0 27273701
ECLASS 12.0 27273701
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
3D-CAD model - zip
Data sheet - pdf
Data sheet - Dimensioned drawing - pdf
