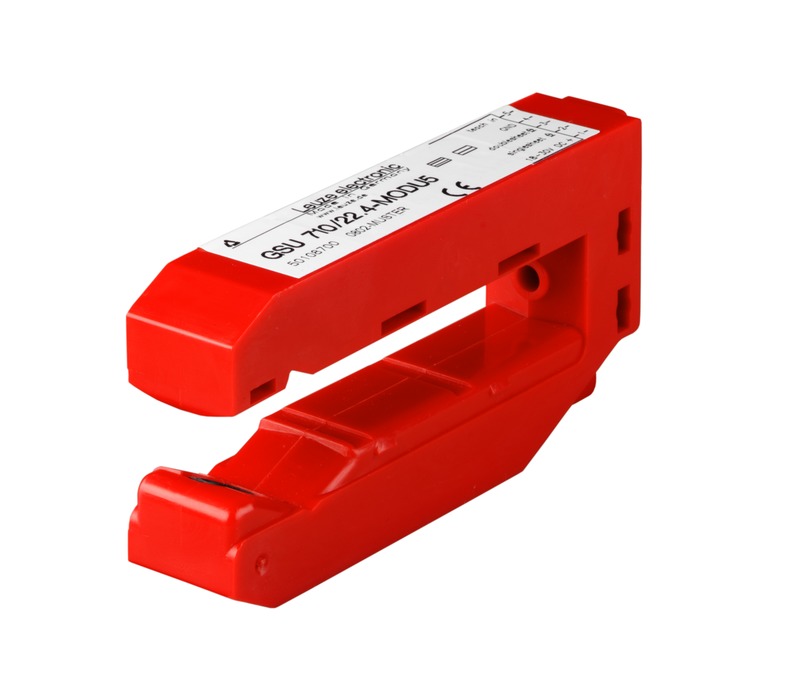

GSU 710/22.4-MODU5
Ultrasonic fork sensor
Part no.:
50108700
Follow-up article
Hello, we'd be happy to be of assistance to you.
Hello, we'd be happy to be of assistance to you.
Please refer to the file Application Note Substitutes to find technical details on substitute products.
The file can be found under the Downloads/Technical documentation tab.
Results list: 3 products found
KD U-M12-5A-V1-050
Connection cable
Part no.:
50132079
- Connection: Connector, M12
- Version: Axial, Female
- No. of pins: 5 Piece(s)
- Cable length: 5,000 mm
DB 18 UP.1-25,2500
Ultrasonic sensors
Part no.:
50108998
- Series: 18
- Principle of physics: Ultrasonics
- Design, sensor: Cylindrical
VDB 12B/6N
Double sheet monitoring amplifier
Part no.:
50104402
- Series: 12
- Application: Double sheet monitoring
- Switching output: Transistor, Push-pull
- Principle of physics: Ultrasonics
| Series | 710 |
| Principle of physics | Ultrasonics |
| Application | Double sheet monitoring |
| Supply voltage UB | 18 ... 30 V, DC |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 2 Piece(s) |
| Switching element | Transistor, NPN |
| Function | Single sheet detected or ≥ 1 sheet |
| Switching element | Transistor, NPN |
| Function | Double sheet detected or ≥ 2 sheets |
| Switching frequency | 200 Hz |
| Type of connection | AMP |
| Design | Fork |
| Mouth width | 13 mm |
| Mouth depth | 89 mm |
| Dimension (W x H x L) | 20 mm x 49 mm x 107 mm |
| Housing material | Plastic |
| Net weight | 100 g |
| Ambient temperature, operation | 0 ... 50 °C |
| Degree of protection | IP 40 |
| Protection class | II |
| Standards applied | IEC 60947-5-2 |
| Customs tariff number | 85365019 |
| ECLASS 8.0 | 27272890 |
| ECLASS 9.0 | 27272890 |
| ETIM 5.0 | EC001849 |
| ETIM 6.0 | EC001849 |
