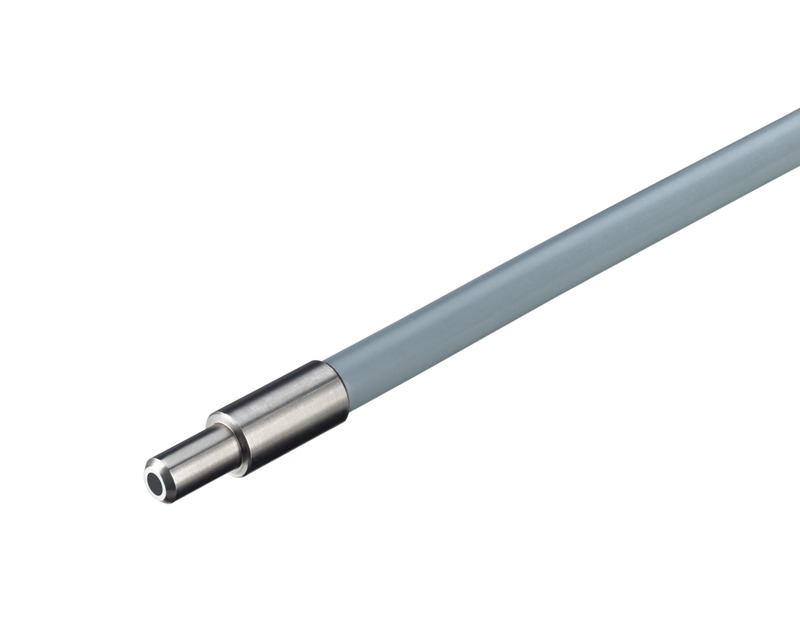

GF-ETG-SI-630-IQ

Glass fiber optics type diffuse reflective

Part no.: 50126475

Series GF
Operating principle Diffuse reflection principle
Area of application Oil and chemical resistant
Special version Heat resistant
Opening angle 65 °
Light beam exit On face
Fiber core 50%/50% fiber configuration
Multiple fiber core
Fiber core material Glass
Active fiber diameter 2.5 mm
Design Cylindrical
Outer diameter 6 mm
Head material Stainless steel
Type Glass fiber optics (GF)
Fiber length 3,000 mm
Fiber sheathing material Silicone
Fastening of the probe Ø 6 mm
Smallest bending radius (static) R40
Smallest bending radius (moving) R40
Sleeve length at optical outlet 10 mm
Metric thread on fiber optic sleeve No
Laying standard
Ambient temperature, operation -30 ... 180 °C
Customs tariff number 90011090
ECLASS 5.1.4 27270905
ECLASS 8.0 27270905
ECLASS 9.0 27270905
ECLASS 10.0 27270905
ECLASS 11.0 27273606
ECLASS 12.0 27273606
ECLASS 13.0 27273606
ECLASS 14.0 27273606
ETIM 5.0 EC002651
ETIM 6.0 EC002651
ETIM 7.0 EC002651
ETIM 8.0 EC002651
ETIM 9.0 EC002651
