TK 82.2
Reflector
Part no.:
50024127
| Design | Round |
| Triple reflector size | 4 mm |

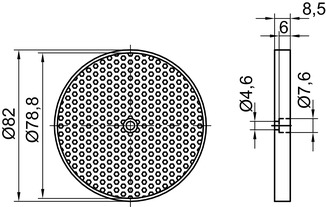

| Mounting dimension, thickness | 8.5 mm |
| Mounting dimension, diameter | 82 mm |
| Reflective surface, diameter | 79 mm |
| Reflector material | Plastic |
| Material of base material | Plastic |
| Polarization-changing | Yes |
| Chemical designation, reflector material | PMMA8N |
| Structure, active surface | Triple |
| Net weight | 30 g |
| Type of fastening | Rear side can be glued Through-hole mounting |
| Ambient temperature, operation | -40 ... 65 °C |
| Degree of protection | IP 67 |
| Customs tariff number | 90029000 |
| ECLASS 5.1.4 | 27279203 |
| ECLASS 8.0 | 27279203 |
| ECLASS 9.0 | 27273601 |
| ECLASS 10.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ECLASS 13.0 | 27273601 |
| ETIM 5.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 8.0 | EC002467 |
Results list: 2 products found
BTU 346M-D12
Mounting system
Part no.:
50122797
- Design of mounting device: Mounting system
- Type of fastening, at device: Screw type
- Type of fastening, at system: For 12 mm rod
- Mounting device material: Metal
BTU 346M.5-D12
Mounting system
Part no.:
50122798
- Design of mounting device: Mounting system
- Type of fastening, at device: Screw type
- Type of fastening, at system: For 12 mm rod
- Mounting device material: Stainless steel
