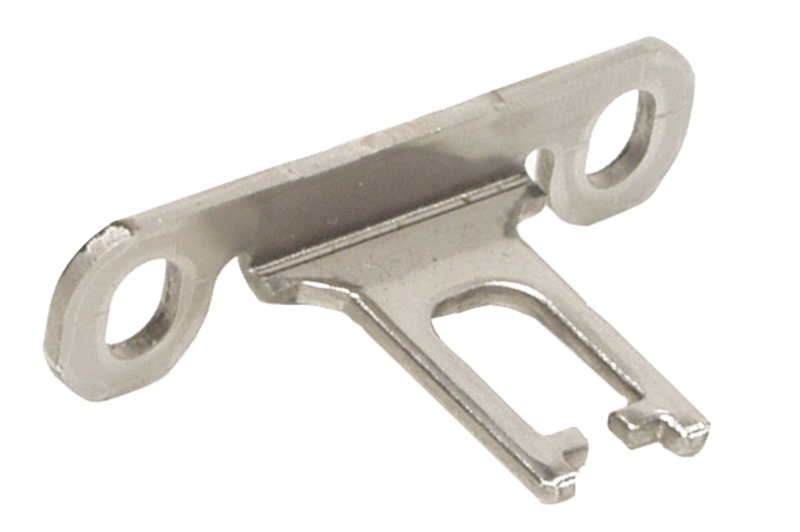

AC-AN-ASH
Actuator
Part no.:
63000707
Delivery time approx. 19 business days

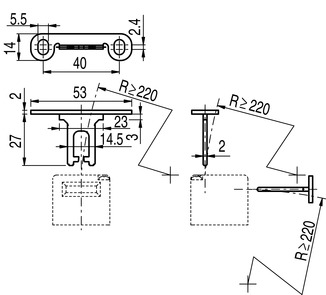

| Dimension (W x H x L) | 53 mm x 14 mm x 29 mm |
| Net weight | 12 g |
| Type of fastening | Through-hole mounting |
| Design, actuator | Angled |
| Area of application, actuator | Normal duty |
| Mounting bore holes | In key direction |
| Material | Stainless steel |
| Customs tariff number | 85369095 |
| ECLASS 5.1.4 | 27279216 |
| ECLASS 8.0 | 27279216 |
| ECLASS 9.0 | 27272606 |
| ECLASS 10.0 | 27272606 |
| ECLASS 11.0 | 27272606 |
| ECLASS 12.0 | 27272606 |
| ECLASS 13.0 | 27272606 |
| ECLASS 14.0 | 27272606 |
| ECLASS 15.0 | 27272606 |
| ETIM 5.0 | EC001487 |
| ETIM 6.0 | EC001487 |
| ETIM 7.0 | EC001487 |
| ETIM 8.0 | EC001487 |
| ETIM 9.0 | EC001487 |
| ETIM 10.0 | EC001487 |
