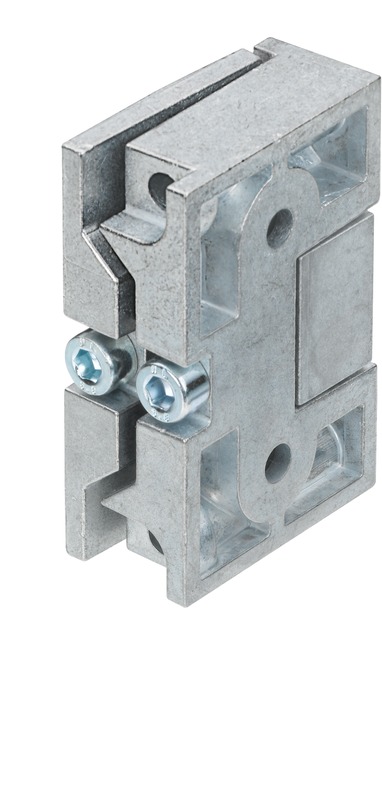

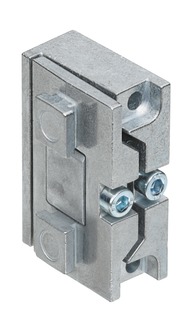

BT-SB10
Mounting bracket set
Part no.:
424421
Available immediately
| Suitable for product group | Measuring light curtains Protective sensors Safety light curtains Switching light curtains |
| Suitable for | CML700i light curtains CSL 710 light curtains MLC 500, MLC 300 safety light curtains MLD 500, MLD 300 multiple light beam safety devices Single light beam safety devices MLD500 |
| Net weight | 208 g |
| Design of mounting device | Mounting clamp |
| Type of fastening, at system | Through-hole mounting |
| Type of fastening, at device | Clampable |
| Type of mounting device | Swiveling |
| Swivel range | -8 ... 8 ° |
| Mounting device material | Metal |
| Customs tariff number | 73182900 |
| ECLASS 5.1.4 | 27279202 |
| ECLASS 8.0 | 27279202 |
| ECLASS 9.0 | 27273701 |
| ECLASS 10.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 13.0 | 27273701 |
| ECLASS 14.0 | 27273701 |
| ECLASS 15.0 | 27273701 |
| ETIM 5.0 | EC002498 |
| ETIM 6.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 9.0 | EC003015 |
| ETIM 10.0 | EC003015 |
