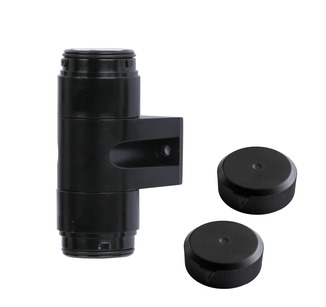

E4-MW2

Tower light element

Part no.: 50130457

Available immediately

Icon Icon
Series E4
Type of connection Terminal
Type of terminal Push-in technology
Design Cylindrical
Dimension (Ø x L) 40 mm x 56 mm
Housing material Plastic
Housing color Black
Design of mounting device Bracket mounting
Type of fastening, at system Screw type / vertical
Lens modules Max. 10 pieces
Module holder Two-sided
Number of end caps 2 Piece(s)
Ambient temperature, operation -30 ... 60 °C
Degree of protection IP 66
Customs tariff number 85318070
ECLASS 5.1.4 27371235
ECLASS 8.0 27371235
ECLASS 9.0 27371232
ECLASS 10.0 27371235
ECLASS 11.0 27371235
ECLASS 12.0 27371235
ECLASS 13.0 27371235
ECLASS 14.0 27371235
ECLASS 15.0 27371235
ETIM 5.0 EC001154
ETIM 6.0 EC001154
ETIM 7.0 EC001154
ETIM 8.0 EC001154
ETIM 9.0 EC001154
ETIM 10.0 EC001154
EPLAN macro - edz
EC declaration of conformity - pdf
