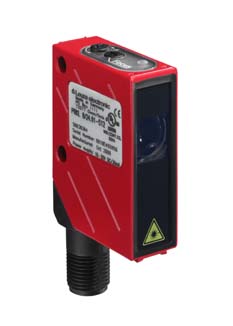

LSSRL 8.98-S12
Throughbeam photoelectric sensor transmitter
Series | 8 |
Operating principle | Throughbeam principle |
Device type | Transmitter |
Special version | Activation input |
Operating range | 0 ... 60 m |
Operating range limit | 0 ... 100 m |
Light source | Laser, Red |
Laser class | 2, IEC/EN 60825-1:2007 |
Protective circuit | Polarity reversal protection Short circuit protected |
Supply voltage UB | 10 ... 30 V, DC |
Residual ripple | 0 ... 15 %, From UB |
Open-circuit current | 0 ... 35 mA |
Number of activation inputs | 1 Piece(s) |
Type of connection | Connector, Turning, 90° |
Thread size | M12 |
Material | Metal |
No. of pins | 5 -pin |
Dimension (W x H x L) | 15 mm x 48 mm x 38 mm |
Housing material | Metal |
Metal housing | Zinc |
Lens cover material | Glass |
Net weight | 70 g |
Type of fastening | Dovetail grooves Mounting bracket Through-hole mounting Via optional mounting device |
Compatibility of materials | ECOLAB |
Operational controls | Multiturn potentiometer |
Ambient temperature, operation | -10 ... 40 °C |
Degree of protection | IP 67 IP 69K |
Protection class | II |
Certifications | c UL US |
Standards applied | IEC 60947-5-2 |
Customs tariff number | 85365019 |
ECLASS 5.1.4 | 27270901 |
ECLASS 8.0 | 27270901 |
ECLASS 9.0 | 27270901 |
ECLASS 10.0 | 27270901 |
ECLASS 11.0 | 27270901 |
ETIM 5.0 | EC002716 |
ETIM 6.0 | EC002716 |
ETIM 7.0 | EC002716 |
