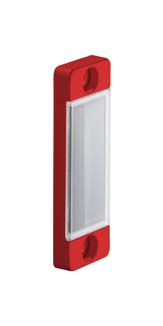

REF 6-S-20x40.P

Reflector

Part no.: 50137427

£25.92*

Available immediately

61 currently available

Icon
Area of application Pharmaceutical
Design Rectangular
Direction independent No
Triple reflector size 0.3 mm
Mounting dimension, width 20 mm
Mounting dimension, height 60 mm
Mounting dimension, thickness 6 mm
Reflection surface height 38 mm
Reflection surface width 16 mm
Reflector material Plastic
Material of base material Plastic
Polarization-changing Yes
Chemical designation, reflector material PET
Structure, active surface Mikrotriple
Net weight 6 g
Type of fastening Screw type
Compatibility of materials ECOLAB
Ambient temperature, operation -40 ... 70 °C
Degree of protection IP 67
Customs tariff number 90029000
ECLASS 5.1.4 27279203
ECLASS 8.0 27279203
ECLASS 9.0 27273601
ECLASS 10.0 27273601
ECLASS 11.0 27273601
ECLASS 12.0 27273601
ETIM 5.0 EC002467
ETIM 6.0 EC002467
ETIM 7.0 EC002467
3D-CAD model - zip
