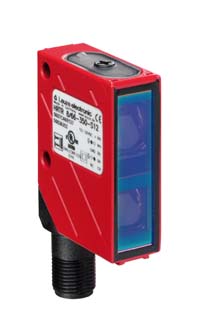

RTR 8/66-800-S12
Energetic diffuse sensor
Part no.: 50036368
  • Series: 8
  • Operating principle: Diffuse reflection principle
  • Operating range, max.: 0.01 ... 0.6 m
  • Design: Cubic
Part no.: 50036368
Series 8
Operating principle Diffuse reflection principle
Operating range Guaranteed operating range
Operating range, white 90% 0.01 ... 0.6 m
Operating range, gray 18% 0.015 ... 0.21 m
Operating range, black 6% 0.025 m
Operating range limit Typical operating range
Operating range limit, white 90% 0.01 ... 0.8 m
Operating range limit, gray 18% 0.015 ... 0.32 m
Operating range limit, black 6% 0.025 ... 0.22 m
Beam path Divergent
Light source LED, Red
Wavelength 660 nm
LED group 1
Type of light spot geometry Rectangular
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 35 mA
Number of digital switching outputs 2 Piece(s)
Switching element Transistor, PNP
Switching principle Light switching
Switching element Transistor, PNP
Switching principle Dark switching
Switching frequency 1,500 Hz
Response time 0.33 ms
Readiness delay 100 ms
Function Signal OUT
Voltage supply
Type of connection Connector, Turning, 90°
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding A-coded
Dimension (W x H x L) 15 mm x 48 mm x 38 mm
Housing material Metal
Metal housing Zinc
Lens cover material Glass
Net weight 70 g
Housing color Red
Type of fastening Dovetail grooves
Mounting thread
Through-hole mounting
Via optional mounting device
Compatibility of materials ECOLAB
Type of display LED
Operational controls 270° potentiometer
Ambient temperature, operation -40 ... 60 °C
Ambient temperature, storage -40 ... 70 °C
Degree of protection IP 67
IP 69K
Protection class II
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 8.0 27270903
ECLASS 9.0 27270903
ETIM 5.0 EC001821
ETIM 6.0 EC001821
