LS 78/24 RE

Throughbeam photoelectric sensor receiver

Part no.: 50006684

Results list: 5 products found
LE49C.UC/TS-TB
Throughbeam photoelectric sensor receiver
Part no.: 50127441
  • Series: 49C
  • Operating principle: Throughbeam principle
  • Switching frequency: 25 Hz
  • Connection: Terminal
Part no.: 50127441
LE49C/2N-TB
Throughbeam photoelectric sensor receiver
Part no.: 50134455
  • Series: 49C
  • Operating principle: Throughbeam principle
  • Switching frequency: 500 Hz
  • Connection: Terminal
Part no.: 50134455
LE49C/4P-TB
Throughbeam photoelectric sensor receiver
Part no.: 50134454
  • Series: 49C
  • Operating principle: Throughbeam principle
  • Switching frequency: 500 Hz
  • Connection: Terminal
Part no.: 50134454
LS49C-TB
Throughbeam photoelectric sensor transmitter
Part no.: 50134450
  • Series: 49C
  • Operating principle: Throughbeam principle
  • Light source: LED, Red
  • Connection: Terminal
Part no.: 50134450
LS49C.UC-TB
Throughbeam photoelectric sensor transmitter
Part no.: 50127437
  • Series: 49C
  • Operating principle: Throughbeam principle
  • Light source: LED, Red
  • Connection: Terminal
Part no.: 50127437
Series 78
Operating principle Throughbeam principle
Device type Receiver
Supply voltage UB 12 ... 30 V, DC
Number of digital switching outputs 3 Piece(s)
Switching element Transistor, PNP, NC contact/NO contact
Switching principle Light/dark switchable
Switching element Transistor, NPN
Switching principle Light/dark switchable
Switching frequency 100 Hz
Type of connection Terminal
No. of pins 8 -pin
Dimension (W x H x L) 38 mm x 127 mm x 99 mm
Housing material Metal
Metal housing Diecast aluminum
Net weight 600 g
Ambient temperature, operation -20 ... 60 °C
Degree of protection IP 65
Protection class I
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
Results list: 2 products found
BT 16
Mounting device
Part no.: 50006902
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50006902

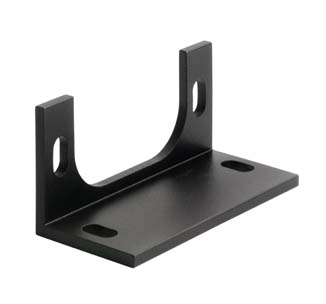

BT 78
Mounting device
Part no.: 50003374
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50003374
Data sheet - pdf
