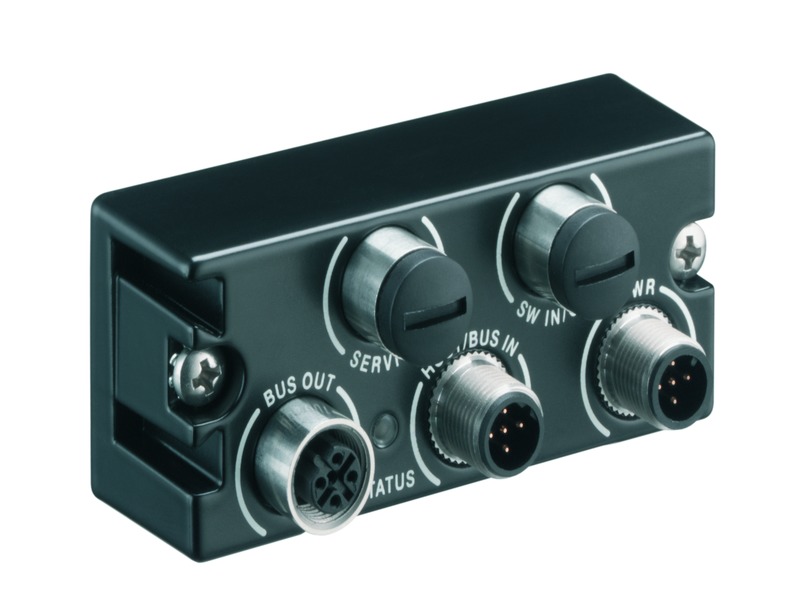

MS 31 105

Connection unit

Part no.: 50107685

Follow-up article

Hello, we'd be happy to be of assistance to you.

We'd be happy to help you in finding a suitable alternative quickly and easily.


Please contact us via: Contact

Suitable for BCL 31
Type RS 232
Number of connections 5 Piece(s)
Function Service interface
Type of connection Connector
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding A-coded
Function Signal IN
Signal OUT
Type of connection Connector
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding A-coded
Function BUS OUT
Type of connection Connector
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding B-coded
Function HOST / BUS IN
Type of connection Connector
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding B-coded
Function Voltage supply
Type of connection Connector
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding A-coded
Design Cubic
Dimension (W x H x L) 90 mm x 36 mm x 39 mm
Housing material Metal
Metal housing Diecast zinc
Net weight 160 g
Housing color Black
Type of display LED
Number of LEDs 1 Piece(s)
Degree of protection IP 65
Protection class III
Certifications c UL US
Customs tariff number 84733080
ECLASS 8.0 27279290
ECLASS 9.0 27279090
ETIM 5.0 EC002498
ETIM 6.0 EC002498
