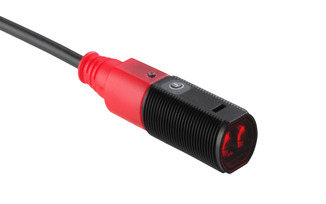

FT318B.3/4P
Energetic diffuse sensor
Part no.: 50122555
  • Series: 318B
  • Operating principle: Diffuse reflection principle
  • Operating range, max.: 0.001 ... 0.215 m
  • Design: Cylindrical
Part no.: 50122555
Series 318
Operating principle Diffuse reflection principle
Operating range, white 90% 0 ... 0.2 m
Operating range, gray 18% 0.002 ... 0.1 m
Operating range, black 6% 0.007 ... 0.07 m
Operating range limit, white 90% 0 ... 0.25 m
Operating range limit, gray 18% 0.002 ... 0.12 m
Operating range limit, black 6% 0.007 ... 0.08 m
Light source LED, Infrared
Protective circuit Polarity reversal protection
Short circuit protected
Transient protection
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 10 %, From UB
Open-circuit current 0 ... 25 mA
Number of digital switching outputs 2 Piece(s)
Switching element Transistor, PNP
Switching principle Light switching
Switching element Transistor, PNP
Switching principle Dark switching
Switching frequency 1,000 Hz
Response time 0.5 ms
Type of connection Cable
Cable length 2,000 mm
Number of conductors 4 -wire
Thread size M18 x 1 mm
Dimension (Ø x L) 18 mm x 50 mm
Housing material Plastic
Plastic housing PA 12
Lens cover material Plastic
Net weight 90 g
Operational controls 270° potentiometer
Ambient temperature, operation -25 ... 65 °C
Degree of protection IP 67
Protection class II
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 8.0 27270903
ECLASS 9.0 27270903
ETIM 5.0 EC001821
ETIM 6.0 EC001821
Results list: 1 products found
BT D18M.5
Mounting bracket
Part no.: 50113548
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Stainless steel
Part no.: 50113548
Filter
Results list: 1 products found
BTU D18M-D12
Mounting system
Part no.: 50117490
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50117490
Results list: 1 products found
BT 318-ARH
Adjustment fastening part
Part no.: 50083189
  • Design of mounting device: Mounting plate
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50083189
