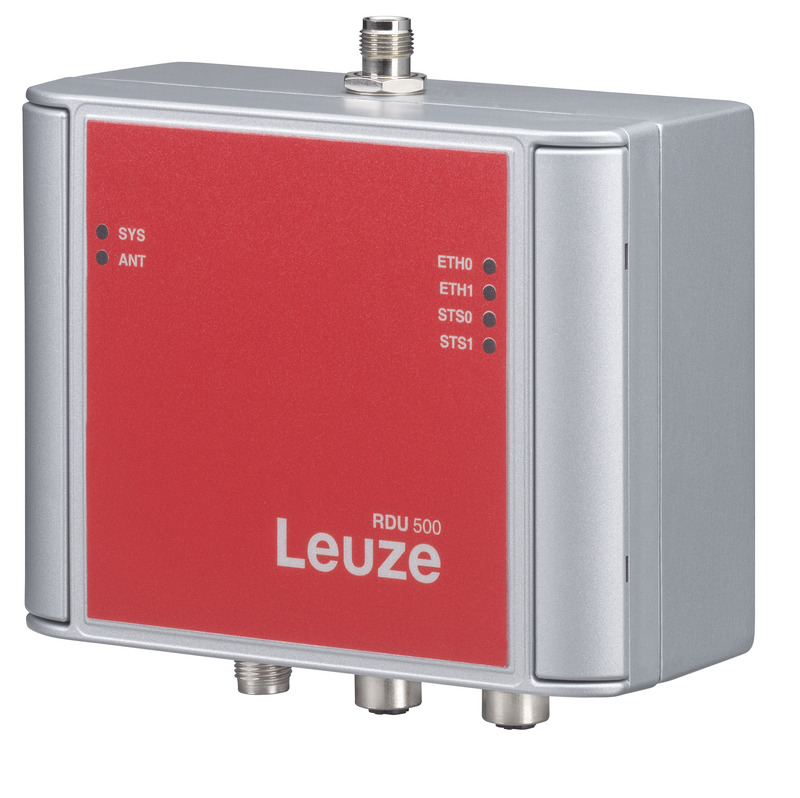

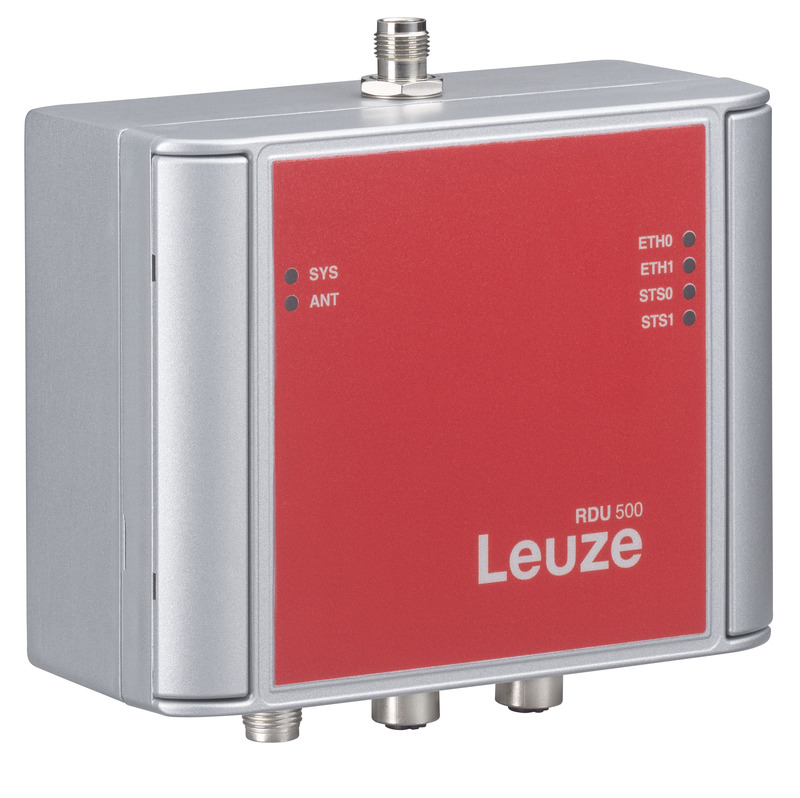

RDU 548i 01
RFID read/write device
Part no.:
50150669
| Series | RDU 500 |
| Arbeitsfrequenz | 865 ... 868 MHz |
| Functions | Configurable operating modes LED indicator Reading gate control |
| Reading/writing range, max. | 2,000 mm |
| Transponder, readable | EPC Gen2V2 ISO/IEC 18000-63 |
| Memory access | Read/Write |
| Type | PROFINET |
| Number of connections | 3 Piece(s) |
| Function | PWR |
| Type of connection | Connector |
| Thread size | M12 |
| Function | XF1 IN |
| Type of connection | Connector |
| Function | XF2 OUT |
| Design | Cubic |

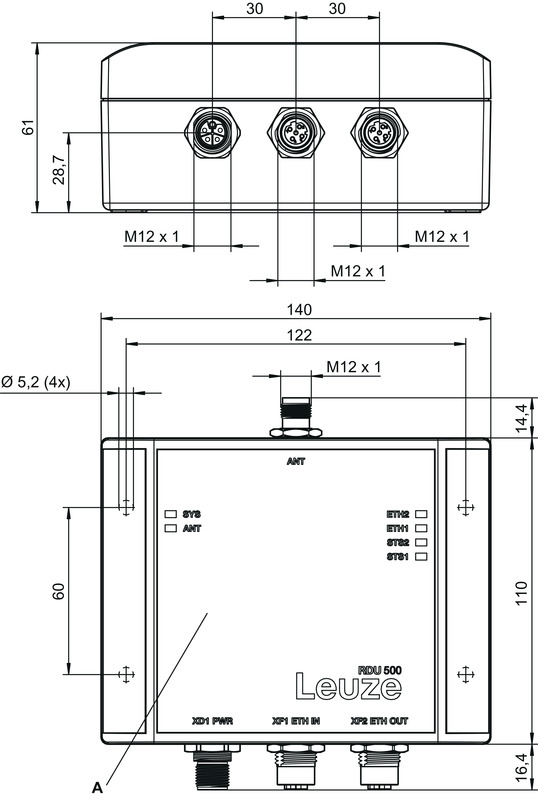

| Dimension (W x H x L) | 140 mm x 62 mm x 178 mm |
| Housing material | Metal Plastic |
| Net weight | 600 g |
| Housing color | Red Silver |
| Type of fastening | Through-hole mounting |
| Ambient temperature, operation | -32 ... 60 °C |
| Ambient temperature, storage | -40 ... 85 °C |
| Relative humidity (non-condensing) | 0 ... 90 % |
| Degree of protection | IP 67 |
| Approvals | EU |
| Standards applied | Directive 2014/53/EU |
| Customs tariff number | 84719000 |
| ECLASS 5.1.4 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 9.0 | 27280401 |
| ECLASS 10.0 | 27280401 |
| ECLASS 11.0 | 27280401 |
| ECLASS 12.0 | 27280401 |
| ECLASS 13.0 | 27280401 |
| ECLASS 14.0 | 27280401 |
| ECLASS 15.0 | 27280401 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| ETIM 9.0 | EC002998 |
| ETIM 10.0 | EC002998 |
