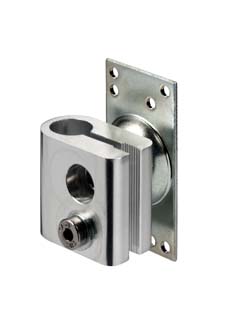

BT 20-D12

Mounting device

Part no.: 50060503

Delivery to be confirmed
Contains 2x M3 mounting nut
2x M3 x 6 screw
2x M3 x 16 screw
2x position washers
Suitable for product group Stationary bar code readers
Suitable for 25 series sensors
BCL 2x series bar code readers
Design of mounting device Mounting system
Type of fastening, at system For 12 mm rod
Sheet-metal mounting
Type of fastening, at device Screw type
Mounting device material Metal
Customs tariff number 83024900
ECLASS 5.1.4 27279202
ECLASS 8.0 27279202
ECLASS 9.0 27273701
ECLASS 10.0 27273701
ECLASS 11.0 27273701
ECLASS 12.0 27273701
ECLASS 13.0 27273701
ECLASS 14.0 27273701
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
ETIM 8.0 EC003015
ETIM 9.0 EC003015
3D-CAD model - zip
