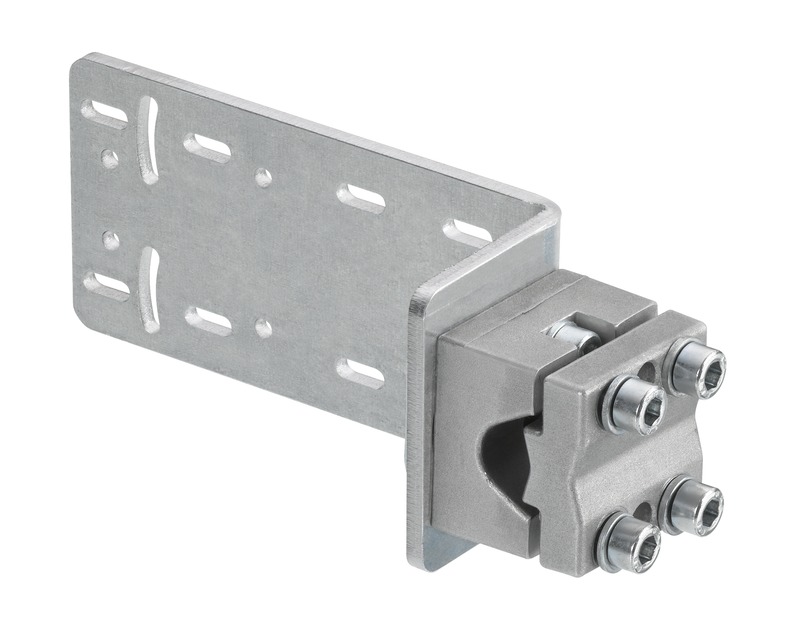

BTU 330M-1

Mounting device

Part no.: 50144299

Available immediately

44 currently available

Contains 8x M4 x 10 screws
8x lock washers
8x position washers
Suitable for product group Stationary 2D-code readers
Suitable for DCR 200i
IL AL illumination
IPS 200i
IPS 400i
Standard designation, metal mounting device Diecast aluminum
Steel, galvanized
Design of mounting device Mounting system
Type of fastening, at system For 10-16 mm rods
Type of fastening, at device Screw type
Type of mounting device Adjustable
Turning, 360°
Mounting device material Metal
Customs tariff number 39269097
ECLASS 5.1.4 27279202
ECLASS 8.0 27279202
ECLASS 9.0 27273701
ECLASS 10.0 27273701
ECLASS 11.0 27273701
ECLASS 12.0 27273701
ECLASS 13.0 27273701
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
ETIM 8.0 EC003015
3D-CAD model - zip
