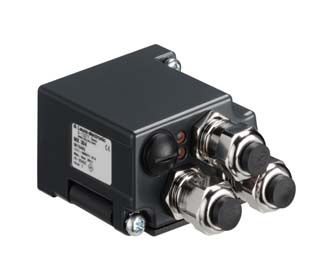

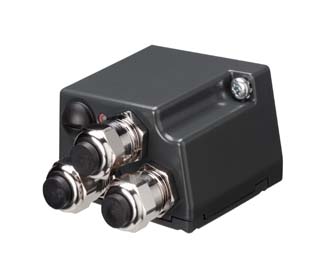

MK 358

Connection unit

Part no.: 50120796

£354.24*

Delivery to be confirmed

Suitable for BCL 358i
Type EtherNet IP, EtherNet IP
Number of connections 4 Piece(s)
Function PWR / SW IN / OUT
No. of pins 5 -pin
Function HOST / BUS IN
Type of connection Terminal
No. of pins 5 -pin
Function BUS OUT
No. of pins 5 -pin
Function Service interface
Type of connection USBTerminalTerminal
Design Cubic
Dimension (W x H x L) 64 mm x 83.5 mm x 43.5 mm
Housing material Metal
Plastic
Metal housing Diecast aluminum
Net weight 186 g
Housing color Black
Type of display LED
Number of LEDs 2 Piece(s)
Customs tariff number 84733080
ECLASS 5.1.4 27280190
ECLASS 8.0 27280190
ECLASS 9.0 27279090
ECLASS 10.0 27280192
ECLASS 11.0 27280191
ECLASS 12.0 27280191
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
Results list: 1 products found
KB USB A - USB miniB
Service line
Part no.: 50117011
  • Interface: USB
  • Connection: USB  -  USB
  • Cable length: 1,500 mm
  • Sheathing material: PVC
Part no.: 50117011

£8.32*

Delivery time approx. 9 days
3D-CAD model - zip
EPLAN macro - edz
Package insert - pdf
Declaration of Conformity - pdf
