Attention! This article is no longer available.

HRT 46B/4D,200-S12

Diffuse sensor with background suppression

Part no.: 50109551

Watch/inquiry list

Note / Follow-up article
Technical features
Accessories
Downloads

Results list: 1 products found

HT46CI/PX-200-M12

HT46CI/PX-200-M12

Diffuse sensor with background suppression

Part no.: 50127065

Series: 46C
Operating principle: Diffuse reflection principle with background suppr...
Operating range, max.: 0.005 ... 3 m
Design: Cubic

Part no.: 50127065

Series	46B
Operating principle	Diffuse reflection principle with background suppression

Operating range, white 90%	0 ... 2.5 m
Operating range, gray 18%	0.005 ... 1.8 m
Operating range, black 6%	0.01 ... 1.2 m
Operating range limit	0 ... 2.5 m
Light source	LED, Infrared

Protective circuit

Polarity reversal protection
Short circuit protected

Supply voltage U_B	10 ... 30 V, DC
Residual ripple	0 ... 15 %, From U_B
Open-circuit current	0 ... 30 mA

Number of digital switching outputs

1 Piece(s)

Switching element	Transistor, PNP
Switching principle	Dark switching

Switching frequency	200 Hz
Response time	2.5 ms

Type of connection	Cable with connector
Cable length	200 mm
Thread size	M12
Material	Metal
No. of pins	4 -pin

Dimension (W x H x L)	18.5 mm x 76.9 mm x 43.4 mm
Housing material	Plastic
Plastic housing	PC-ABS
Lens cover material	Plastic
Net weight	65 g
Type of fastening	Through-hole mounting
Compatibility of materials	ECOLAB

Operational controls

Multiturn potentiometer

Ambient temperature, operation

-40 ... 60 °C

Degree of protection	IP 67 IP 69K
Protection class	II
Certifications	c UL US
Standards applied	IEC 60947-5-2

Customs tariff number	85365019
ECLASS 8.0	27270904
ECLASS 9.0	27270904
ETIM 5.0	EC002719
ETIM 6.0	EC002719

Filter

PUR
PVC

Chemical resistant
Oil and lubricant resistant

Results list: 20 products found

KD U-M12-4A-P1-020

KD U-M12-4A-P1-020

Connection cable

Part no.: 50130654

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130654

KD U-M12-4A-P1-020-DP

KD U-M12-4A-P1-020-DP

Connection cable

Part no.: 50130672

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130672

KD U-M12-4A-P1-050

KD U-M12-4A-P1-050

Connection cable

Part no.: 50130657

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130657

KD U-M12-4A-P1-050-DP

KD U-M12-4A-P1-050-DP

Connection cable

Part no.: 50130675

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130675

KD U-M12-4A-P1-100

KD U-M12-4A-P1-100

Connection cable

Part no.: 50130658

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130658

KD U-M12-4A-P1-100-DP

KD U-M12-4A-P1-100-DP

Connection cable

Part no.: 50130676

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130676

KD U-M12-4A-V1-020

KD U-M12-4A-V1-020

Connection cable

Part no.: 50130648

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130648

KD U-M12-4A-V1-050

KD U-M12-4A-V1-050

Connection cable

Part no.: 50130652

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130652

KD U-M12-4A-V1-100

KD U-M12-4A-V1-100

Connection cable

Part no.: 50130653

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130653

KD U-M12-4A-V1-200

KD U-M12-4A-V1-200

Connection cable

Part no.: 50132431

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 20,000 mm

Part no.: 50132431

KD U-M12-4W-P1-020

KD U-M12-4W-P1-020

Connection cable

Part no.: 50130692

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130692

KD U-M12-4W-P1-020-DP

KD U-M12-4W-P1-020-DP

Connection cable

Part no.: 50130718

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130718

KD U-M12-4W-P1-050

KD U-M12-4W-P1-050

Connection cable

Part no.: 50130694

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130694

KD U-M12-4W-P1-050-DP

KD U-M12-4W-P1-050-DP

Connection cable

Part no.: 50130720

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130720

KD U-M12-4W-P1-100

KD U-M12-4W-P1-100

Connection cable

Part no.: 50130695

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130695

KD U-M12-4W-P1-100-DP

KD U-M12-4W-P1-100-DP

Connection cable

Part no.: 50130721

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130721

KD U-M12-4W-V1-020

KD U-M12-4W-V1-020

Connection cable

Part no.: 50130688

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130688

KD U-M12-4W-V1-050

KD U-M12-4W-V1-050

Connection cable

Part no.: 50130690

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130690

KD U-M12-4W-V1-100

KD U-M12-4W-V1-100

Connection cable

Part no.: 50130691

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130691

KD U-M12-4W-V1-200

KD U-M12-4W-V1-200

Connection cable

Part no.: 50132641

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 20,000 mm

Part no.: 50132641

Filter

Results list: 4 products found

KDS U-M12-4A-M12-4A-V1-020

KDS U-M12-4A-M12-4A-V1-020

Interconnection cable

Part no.: 50132438

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132438

KDS U-M12-4A-M12-4A-V1-050

KDS U-M12-4A-M12-4A-V1-050

Interconnection cable

Part no.: 50132439

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132439

KDS U-M12-4A-M12-4A-V1-100

KDS U-M12-4A-M12-4A-V1-100

Interconnection cable

Part no.: 50132440

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132440

KDS U-M12-4A-M12-4A-V1-200

KDS U-M12-4A-M12-4A-V1-200

Interconnection cable

Part no.: 50132441

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132441

Filter

Screw type
Suited for M4 screws

Metal
Stainless steel

Optical distance sensors
Reflectors
Switching sensors cubic

Results list: 2 products found

BT 300M.5

BT 300M.5

Mounting bracket

Part no.: 50118543

Design of mounting device: Angle, L-shape
Type of fastening, at device: Screw type
Type of fastening, at system: Through-hole mounting
Mounting device material: Stainless steel

Part no.: 50118543

BT 46

BT 46

Mounting device

Part no.: 50105315

Design of mounting device: Angle, L-shape
Type of fastening, at device: Screw type
Type of fastening, at system: Through-hole mounting
Mounting device material: Metal

Part no.: 50105315

Filter

Mounting system
Protection hood

Screw type
Suited for M4 screws

For 10 mm rod
For 12 mm rod
For 14 mm rod
For 18 mm rod
For 30 mm rod
Sheet-metal mounting

Metal
Plastic
Stainless steel

Optical distance sensors
Reflectors
Switching sensors cubic

Results list: 11 products found

BTP 300M-D10

BTP 300M-D10

Mounting system

Part no.: 50117827

Design of mounting device: Protection hood
Type of fastening, at device: Screw type
Type of fastening, at system: For 10 mm rod
Mounting device material: Metal

Part no.: 50117827

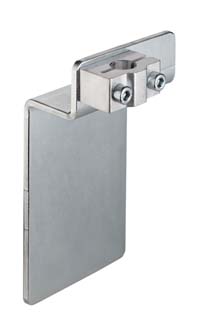

BTP 300M-D12

BTP 300M-D12

Mounting system

Part no.: 50117826

Design of mounting device: Protection hood
Type of fastening, at device: Screw type
Type of fastening, at system: For 12 mm rod
Mounting device material: Metal

Part no.: 50117826

BTP 300M-D14

BTP 300M-D14

Mounting system

Part no.: 50117825

Design of mounting device: Protection hood
Type of fastening, at device: Screw type
Type of fastening, at system: For 14 mm rod
Mounting device material: Metal

Part no.: 50117825

BTU 300M-D10

BTU 300M-D10

Mounting system

Part no.: 50117253

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 10 mm rod
Mounting device material: Metal

Part no.: 50117253

BTU 300M-D12

BTU 300M-D12

Mounting system

Part no.: 50117252

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 12 mm rod
Mounting device material: Metal

Part no.: 50117252

BTU 300M-D14

BTU 300M-D14

Mounting system

Part no.: 50117251

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 14 mm rod
Mounting device material: Metal

Part no.: 50117251

BTU 346M-D12

BTU 346M-D12

Mounting system

Part no.: 50122797

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 12 mm rod
Mounting device material: Metal

Part no.: 50122797

BTU 346M.5-D12

BTU 346M.5-D12

Mounting system

Part no.: 50122798

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 12 mm rod
Mounting device material: Stainless steel

Part no.: 50122798

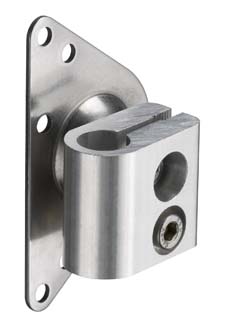

BTU 346M.6-D12

BTU 346M.6-D12

Mounting system

Part no.: 50129149

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 12 mm rod
Mounting device material: Metal

Part no.: 50129149

BTU 360-D18

BTU 360-D18

Rod mounting

Part no.: 50132605

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 18 mm rod
Mounting device material: Plastic

Part no.: 50132605

BTU 360-D30

BTU 360-D30

Rod mounting

Part no.: 50132606

Design of mounting device: Mounting system
Type of fastening, at device: Screw type
Type of fastening, at system: For 30 mm rod
Mounting device material: Plastic

Part no.: 50132606

Results list: 1 products found

SG 46

Protective screen

Part no.: 50117243

Suitable for: 46B series sensors

Part no.: 50117243

3D-CAD model - zip

Multil.

Data sheet - pdf

DE EN ES FR IT

EC declaration of conformity - pdf

DE EN FR

UKCA declaration of conformity - pdf

EN

Certificate - ECOLAB - pdf

DE EN

Add to watch list

To use the watch list function, you must first log in. If you do not have an account, register and benefit from the advantages of being a shop customer.

Watch list

The article is on your watch list. Do you really want to remove the article from your list?

The Sensor People

Quick links

Trade shows & events

Product highlights

Newsletter

Subscribe to our newsletter now and be the first to know.

Follow us

Contact

Leuze electronic, Inc
55395 Lyon Industrial Drive
New Hudson, MI 48165 / USA(248) 486-4466 Phone(248) 486-6699 Fax
info.us@leuze.com

Distributor Login >

Data privacy
Cookie settings
Imprint
General terms and conditions
CE

Foundation Modal

This Modal is powered by moori Foundation
