HRTR 53/66-XL-S8
Diffuse sensor with background suppression
Part no.:
50107507
Watch/inquiry list
| Series | 53 |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Extra long light spot (XL) HYGIENE design |
| Operating range, white 90% | 0.005 ... 0.1 m |
| Operating range, gray 18% | 0.005 ... 0.09 m |
| Operating range, black 6% | 0.005 ... 0.08 m |
| Operating range limit | 0.005 ... 0.1 m |
| Light source | LED, Red |
| Light spot size [at sensor distance] | 3 mm x 40 mm [50 mm] |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 ... 30 V, DC |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 15 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching element | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching element | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Type of connection | Connector |
| Thread size | M8 |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 14 mm x 35.6 mm x 20.3 mm |
| Housing material | Stainless steel |
| Stainless steel housing | AISI 316L |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Net weight | 50 g |
| Type of fastening | Housing fit |
| Compatibility of materials | CleanProof+ ECOLAB |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -30 ... 55 °C |
| Degree of protection | IP 67 IP 69K |
| Protection class | III |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
| Customs tariff number | 85365019 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ECLASS 13.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
Results list: 6 products found
K-D M8A-4P-10m-FAB
Connection cable
Part no.:
50110274
- Connection: Connector, M8
- Version: Axial, Female
- No. of pins: 4 Piece(s)
- Cable length: 10,000 mm
Part no.:
50110274
K-D M8A-4P-2m-FAB
Connection cable
Part no.:
50106152
- Connection: Connector, M8
- Version: Axial, Female
- No. of pins: 4 Piece(s)
- Cable length: 2,000 mm
Part no.:
50106152
K-D M8A-4P-5m-FAB
Connection cable
Part no.:
50106153
- Connection: Connector, M8
- Version: Axial, Female
- No. of pins: 4 Piece(s)
- Cable length: 5,000 mm
Part no.:
50106153
K-D M8W-4P-10m-FAB
Connection cable
Part no.:
50110273
- Connection: Connector, M8
- Version: Angled, Female
- No. of pins: 4 Piece(s)
- Cable length: 10,000 mm
Part no.:
50110273

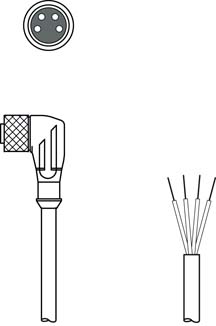

K-D M8W-4P-2m-FAB
Connection cable
Part no.:
50106154
- Connection: Connector, M8
- Version: Angled, Female
- No. of pins: 4 Piece(s)
- Cable length: 2,000 mm
Part no.:
50106154
K-D M8W-4P-5m-FAB
Connection cable
Part no.:
50106155
- Connection: Connector, M8
- Version: Angled, Female
- No. of pins: 4 Piece(s)
- Cable length: 5,000 mm
Part no.:
50106155
Results list: 1 products found
BTU 053M.5F-D12-T
Mounting system
Part no.:
50145361
- Design of mounting device: Mounting system
- Type of fastening, at device: For 12 mm rod
- Type of fastening, at system: Screw type
- Mounting device material: Stainless steel
Part no.:
50145361
