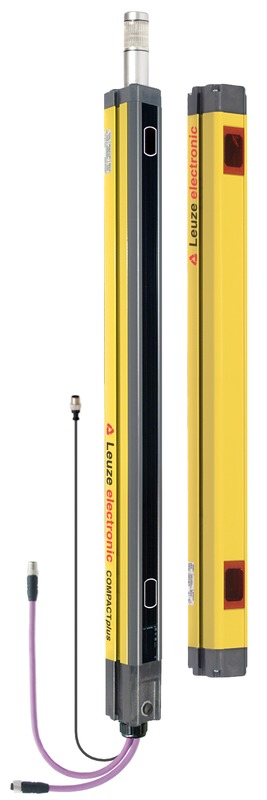

CPRT500/2-ml/P1

Multiple light beam safety device transmitter/receiver

Part no.: 68800881

Series COMPACTplus
Device type Transceiver
Function package Muting
Functions Timing controlled 4-sensor muting, Muting restart override function, Timing controlled 2-sensor muting
Integrated laser alignment aid No
Integrated muting indicator Yes
Integrated status indicator No
Type 4, IEC/EN 61496
SIL 3, IEC 61508
SILCL 3, IEC/EN 62061
Performance Level (PL) e, EN ISO 13849-1
PFHD 2.67E-08 per hour
Mission time 20 years, EN ISO 13849-1
Category 4, EN ISO 13849
Operating range 0 ... 6.5 m
Number of beams 2 Piece(s)
Beam spacing 500 mm
Synchronization Optical between transmitter and receiver
Light source LED, Infrared
Wavelength 880 nm
Transmitted-signal shape Modulated
LED group 1
Protective circuit Inductive protection, Overtemperature protection, Overvoltage protection, Polarity reversal protection, Short circuit protected, Transient protection
Supply voltage UB 24 V, DC, -20 ... 20 %
Current consumption, max. 170 mA, Without external load
Residual ripple -5 ... 5 %
Fuse External with max. 4 A semi time-lag
Number of digital switching inputs 5 Piece(s)
Type Digital switching input
Switching voltage high, min. 18.2 V
Switching voltage low, max. 2.5 V
Switching voltage, typ. 24 V
Voltage type DC
Switching current, max. 20 mA
Assignment Connection 2, pin 3
Number of digital switching outputs 2 Piece(s)
Type Digital switching output
Switching voltage high, min. 18.2 V
Switching voltage low, max. 2.5 V
Switching voltage, typ. 24 V
Voltage type DC
Response time 40 ms
Restart delay time 100 ms
Type PROFIBUS DP, ProfiSafe
Function Safe monitoring
Classification V2
Cyclic safe data 4 B
Acyclic data Protected field individual beam data, Error data, Warnings
Number of connections 4 Piece(s)
Function Machine interface
Type of connection ConnectorConnectorConnector
Cable length 800 mm
Sheathing material PUR
Thread size M12
Material Plastic
No. of pins 5 -pin
Function Local interface
Type of connection Connector
Thread size M12
Material Plastic
No. of pins 5 -pin
Function PROFIBUS IN
Cable length 350 mm
Sheathing material PUR
Thread size M12
Material Plastic
No. of pins 5 -pin
Function PROFIBUS OUT
Thread size M12
Material Plastic
No. of pins 8 -pin
Length of connection cable, max. 100 m
Permissible cable resistance to load, max. 10 Ω
Dimension (W x H x L) 52 mm x 734 mm x 55 mm
Housing material Metal
Metal housing Aluminum
Material of end caps Plastic
Net weight 1,900 g
Housing color Yellow, RAL 1021
Type of fastening Groove mounting
Type of display 7‑segment display, Integrated muting indicator, LED
Number of LEDs 6 Piece(s)
Type of configuration Switch, Software
Operational controls Slide switch, Via service interface
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -25 ... 70 °C
Relative humidity (non-condensing) 15 ... 95 %
Degree of protection IP 65
Protection class III
Certifications c TÜV NRTL US, c UL US, PROFIBUS
US patents US 6,418,546 B, US 6,876,457 B
Customs tariff number 85365019
ECLASS 8.0 27272703
ECLASS 9.0 27272703
ETIM 5.0 EC001832
ETIM 6.0 EC001832
