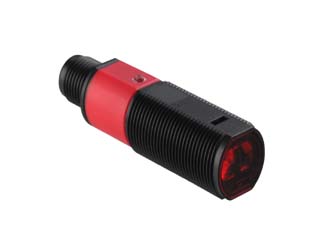

Set L318B.Y1

Throughbeam photoelectric sensor transmitter set

Part no.: 50127462

Follow-up article

Hello, we'd be happy to be of assistance to you.

This is a combination product: receiver and transmitter of the same series are required for operation.
Please ensure that both devices are replaced with the appropriate product alternatives.
Please use the receiver's designation or part number to find an alternative transmitter/receiver combination.

We'd be happy to help you in finding a suitable alternative quickly and easily.

Please contact us via: Contact

Series	318
Operating principle	Throughbeam principle
Device type	Set (transmitter and receiver)

Special version

Article set
Deactivation input

Operating range	0 ... 9.5 m
Operating range	Guaranteed operating range
Operating range limit	Typical operating range
Operating range limit	0 ... 14.2 m
Light source	LED, Red
Wavelength	620 nm

Protective circuit

Polarity reversal protection
Short circuit protected

Supply voltage U_B	10 ... 30 V, DC
Residual ripple	0 ... 15 %, From U_B
Open-circuit current	0 ... 15 mA

Number of digital switching outputs

2 Piece(s)

Switching element	Transistor, PNP
Switching principle	Light switching

Switching element	Transistor, PNP
Switching principle	Dark switching

Switching frequency	500 Hz
Response time	1 ms
Readiness delay	300 ms

Function	Signal OUT Voltage supply
Type of connection	Connector
Thread size	M12
Type	Male
Material	Plastic
No. of pins	4 -pin
Encoding	A-coded

Thread size	M18 x 1 mm
Dimension (Ø x L)	18 mm x 46 mm
Housing material	Plastic
Plastic housing	ABS
Lens cover material	Plastic
Net weight	20 g
Housing color	Black Red
