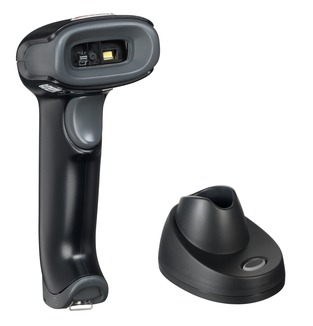

IT 1472g-2D-2 USB-KIT

Wireless mobile 2D-code reader

Part no.: 50144031

Icon Icon
Series IT147xg
Code types, readable 2/5 Interleaved
Aztec
Codabar
Codablock
Code 128
Code 39
Code 93
Data Matrix Code
DotCode
EAN 8/13
EAN Addendum
GS1 Databar
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
GS1 Databar Stacked
GS1 Databar Truncated
Maxicode
Micro PDF
Micro QR
PDF417
QR code
UPC
Reading distance 5 ... 400 mm
Light source LED, Red
LED group 1
Camera resolution, horizontal 1,040 px
Camera resolution, vertical 720 px
Bar code contrast (PCS) 35 %
Modulus size 0.127 ... 0.508 mm
Supply voltage UB 3.7 V, DC
Power consumption, max. 1.8 W
Battery technology LiIon
Battery storage capacity 2.4 A·h
Type PS/2, USB, RS 232
Function Process
Function Process
Bluetooth range Class 2
Bluetooth version 4.2
Type of connection Bluetooth
Dimension (W x H x L) 173 mm x 82 mm x 62 mm
Housing material Plastic
Plastic housing UL 94-V0
Net weight 210 g
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -40 ... 70 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 1.8 m
Measurements relative to Concrete floor
Degree of protection IP 42
Customs tariff number 84719000
ECLASS 5.1.4 27280103
ECLASS 8.0 27280103
ECLASS 9.0 27280103
ECLASS 10.0 27280103
ECLASS 11.0 27280103
ECLASS 12.0 27280103
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002999
