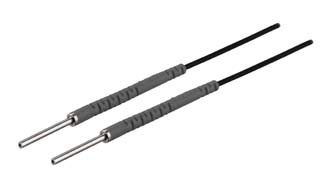

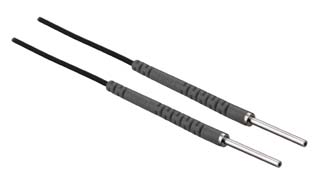

KFX-LD-120

Plastic fiber optics for throughbeam operation

Part no.: 50117777

Series KFX
Operating principle Throughbeam principle
Area of application Precise object detection
Light beam exit Front
Fiber core Single fiber core
Fiber core material Plastic
Minimum object diameter 0.05 mm
Design Cylindrical
Outer diameter 1.25 mm
Head material Stainless steel
Type Plastic fiber optics with bend protection (KFX)
Fiber length 2,000 mm
Fiber sheathing material PE
Fastening of the probe Ø 1.5 mm
Smallest bending radius (moving) R15
Sleeve length at optical outlet 15 mm
Metric thread on fiber optic sleeve No
Laying standard
Damping at λ = 650nm 210 dB/km
Ambient temperature, operation -55 ... 70 °C
Customs tariff number 90011090
ECLASS 5.1.4 27270905
ECLASS 8.0 27270905
ECLASS 9.0 27270905
ECLASS 10.0 27270905
ECLASS 11.0 27270905
ECLASS 12.0 27270905
ETIM 5.0 EC002651
ETIM 6.0 EC002651
ETIM 7.0 EC002651
