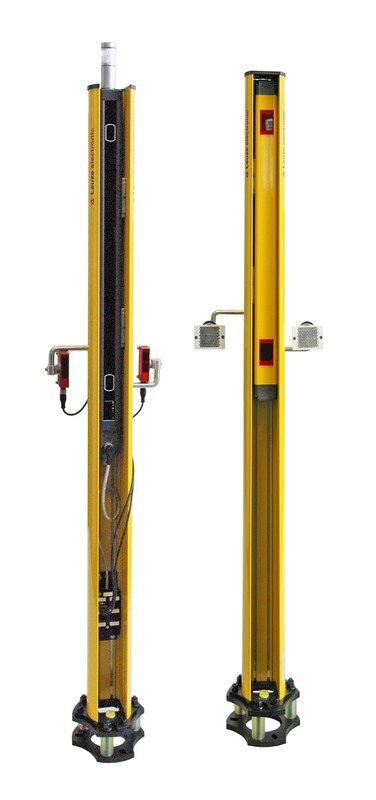

Safety sensor set

Part no.: 909963

Icon Icon Icon Icon Icon
Series CPSET
Special version Integrated muting indicator
Functions Timing controlled 2-sensor muting, Muting options with SafetyLab software, Muting restart override function, Sequence controlled 2-sensor muting, Timing controlled 4-sensor muting
Integrated muting indicator Yes
Type 4, IEC/EN 61496
SIL 3, IEC 61508
SILCL 3, IEC/EN 62061
Performance Level (PL) e, EN ISO 13849-1
PFHD 2.67E-08 per hour
Mission time 20 years, EN ISO 13849-1
Category 4, EN ISO 13849
Operating range 0 ... 18 m
Number of beams 2 Piece(s)
Beam spacing 500 mm
Type of muting sensors PRK retro-reflective photoelectric sensors
With device column Yes
Number of muting sensors 2 Piece(s)
Degree of protection IP 65
Certifications c TÜV NRTL US, c UL US
Customs tariff number 85365019
ECLASS 8.0 27272703
ECLASS 9.0 27272703
ETIM 5.0 EC001832
ETIM 6.0 EC001832
