LSE 25B/44.2

Throughbeam photoelectric sensor receiver

Part no.: 50134497

Available immediately

14 currently available

Icon Icon Icon
Results list: 1 products found
LE25CI.XR1/4P
Throughbeam photoelectric sensor receiver
Part no.: 50147920
  • Series: 25C
  • Operating principle: Throughbeam principle
  • Application: Detection of products in bag packaging
  • Switching frequency: 100 Hz
Part no.: 50147920

Available immediately

21 currently available

Series 25B
Operating principle Throughbeam principle
Device type Receiver
Application Detection of products in bag packaging
Operating range 0 ... 200 m
Operating range limit 0 ... 240 m
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 20 mA
Number of digital switching outputs 2 Piece(s)
Switching element Transistor, PNP
Switching principle Light switching
Switching element Transistor, PNP
Switching principle Dark switching
Switching frequency 100 Hz
Response time 5 ms
Type of connection Cable
Cable length 2,000 mm
Number of conductors 4 -wire
Dimension (W x H x L) 15 mm x 38.9 mm x 28.7 mm
Housing material Plastic
Plastic housing PC-ABS
Lens cover material Plastic / PMMA
Net weight 55 g
Type of fastening Through-hole mounting
Via optional mounting device
Operational controls 270° potentiometer
Ambient temperature, operation -40 ... 55 °C
Degree of protection IP 66
IP 67
Protection class II
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ECLASS 13.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
ETIM 8.0 EC002716
Results list: 1 products found

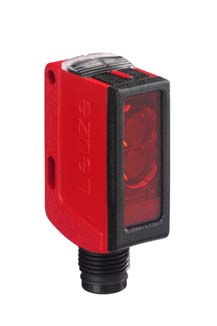

LSS 25B.2
