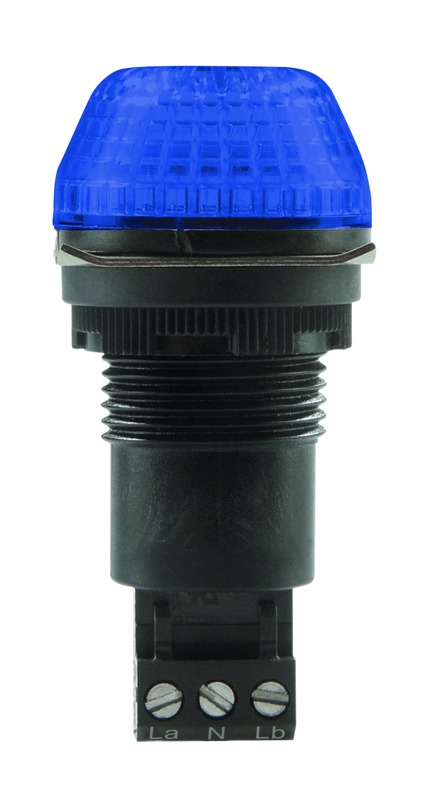

Part no.: 50130510

Icon Icon Icon
Follow-up article

Hello, we'd be happy to be of assistance to you.

We'd be happy to help you in finding a suitable alternative quickly and easily.

Please contact us via: Contact

Type of signaling Optical
Life expectancy > 100,000 h
Supply voltage UB 24 V, AC/DC, 10 %
Current consumption, max. 26 mA
Type of connection Terminal
Design Cylindrical
Dimension (Ø x L) 30 mm x 66 mm
Length in installed state 18 mm
Housing material Plastic
Housing color Black
Type of fastening, at system In bore holes with Ø 22.5 mm
Type of illuminant LED/24V
Lens illumination Full
Signal image Continuous or flashing light
Lens color Blue
Angle of radiation 360°
Ambient temperature, operation -25 ... 60 °C
Degree of protection IP 65
Certifications c UL US
Customs tariff number 85318070
ECLASS 5.1.4 27371220
ECLASS 8.0 27371220
ECLASS 9.0 27371223
ECLASS 10.0 27371220
ECLASS 11.0 27371220
ETIM 5.0 EC000232
ETIM 6.0 EC000232
ETIM 7.0 EC000232
