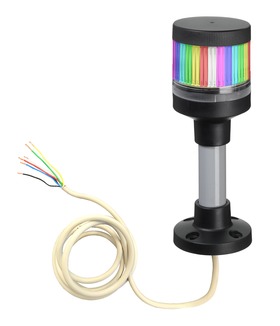

A7-V1-MP1-DS-M7-T-100

Signaling column

Part no.: 50138252

Icon Icon Icon
Series A7
Type of signaling Optical
Life expectancy > 100,000 h
Supply voltage UB 24 V, DC, 10 %
Current consumption, max. 70 mA
Number of connections 2 Piece(s)
Function Voltage supply, Light color programmable via actuation of wires
Type of connection Cable, soldered to lens / open endTerminal
Cable length 1,500 mm
Number of conductors 6 -wire
Design Cylindrical

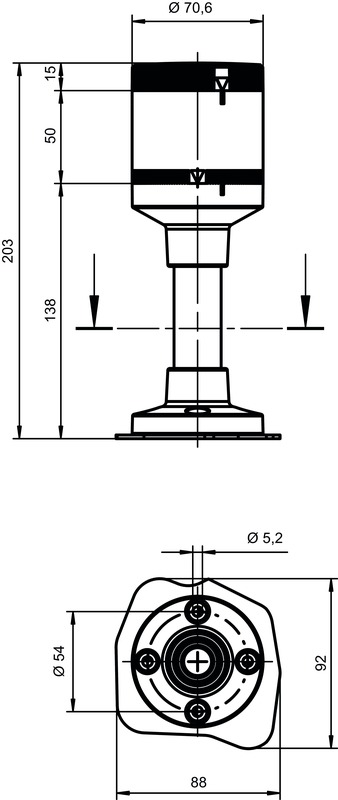

Dimension (Ø x L) 70 mm x 203 mm
Housing material Plastic, Metal
Metal housing Aluminum
Plastic housing PC-ABS
Housing color Black, Gray
Type of fastening, at system Screw type / horizontal
Type of illuminant LED/24V
Lens modules 1 piece
Signal image Continuous or flashing light
Angle of radiation 360°
Degree of protection IP 66, Only when mounted on a housing with the same degree of protection
Certifications CE, CSA
Customs tariff number 85318070
ECLASS 5.1.4 27371230
ECLASS 8.0 27371230
ECLASS 9.0 27371220
ECLASS 10.0 27371230
ECLASS 11.0 27371230
ECLASS 12.0 27371230
ETIM 5.0 EC001042
ETIM 6.0 EC001042
ETIM 7.0 EC001042
