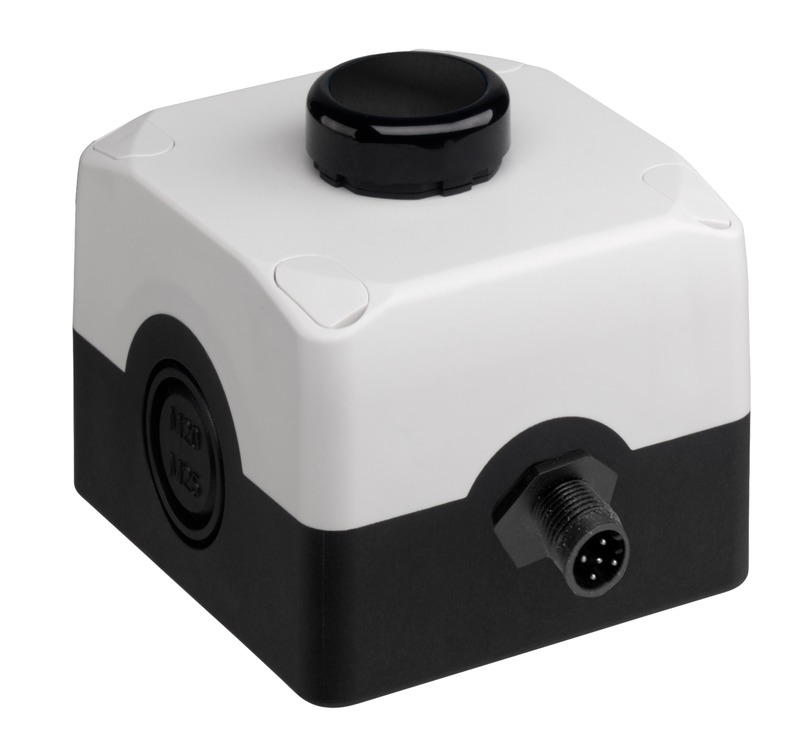

AC-ABF12

Acknowledgment unit

Part no.: 50145465

Functions Overriding with AOPDs with muting function
Switching current via button 1 ... 1,000 mA
Current load, max. 10 A
Number of connections 1 Piece(s)
Type of connection Connector
Thread size M12
Material Plastic
No. of pins 4 -pin
Dimension (W x H x L) 72 mm x 56 mm x 80 mm
Plastic housing Glass fiber reinforced (PPS), self-extinguishing
Net weight 250 g
Clamping plate material Stainless steel
Ambient temperature, operation -25 ... 80 °C
Ambient temperature, storage -25 ... 80 °C
Degree of protection IP 67, IP 69K
Protection class III
Customs tariff number 85369095
ECLASS 5.1.4 27279290
ECLASS 8.0 27279290
ECLASS 9.0 27279090
ECLASS 10.0 27371246
ECLASS 11.0 27371246
ECLASS 12.0 27371246
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
