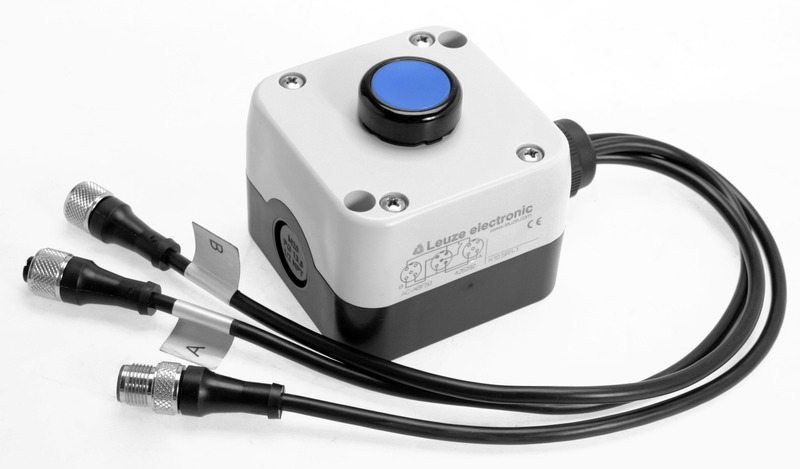

AC-ABF50

Acknowledgment unit

Part no.: 426292

Results list: 3 products found
AC-ABF11
Acknowledgment unit
Part no.: 50141871
Part no.: 50141871
KDS U-M12-4A-M12-4A-P1-050
Interconnection cable
Part no.: 50130743
  • Connection: Connector, M12  - Connector, M12
  • Connection 01, version: Female
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50130743
AC-SCM5U-BT-L
Sensor connection module
Part no.: 520152
  • Suitable for: MLD 330, MLD 530 multiple light beam safety device...
  • Number of connections: 5 Piece(s)
  • Type of fastening: Mounting plate with L-angle
  • Number of LEDs: 4 Piece(s)
Part no.: 520152
Suitable for MLC 300 safety light curtains
MLD 330, MLD 530 multiple light beam safety devices
Functions Illuminated reset buttons
Overriding with AOPDs with muting function
Reset of the start/restart interlock
Reset buttons Yes
LED indicators Yes
Switching current via button 1 ... 1,000 mA
Supply voltage UB 24 V, DC, -20 ... 20 %
Plastic housing Glass fiber reinforced (PPS), self-extinguishing
Net weight 800 g
Clamping plate material Stainless steel
Degree of protection IP 67
IP 69K
Protection class III
Customs tariff number 85369095
ECLASS 5.1.4 27279290
ECLASS 8.0 27279290
ECLASS 9.0 27279090
ECLASS 10.0 27371246
ECLASS 11.0 27371246
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
EC declaration of conformity - pdf
