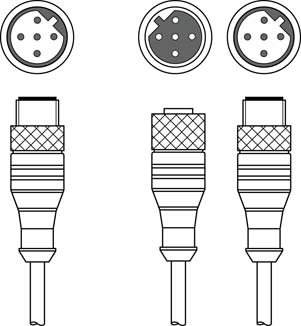

K-YPB M12A-5m-M12A-S-PUR
Interconnection cable
Part no.:
50123265
Results list: 2 products found
KDS PB-M12-4A-M12-4A-P3-050
Interconnection cable
Part no.:
50135254
- Interface: PROFIBUS DP
- Connection: Connector, M12 - Connector, M12
- Connection 01, version: Female
- Connection 1, no. of pins: 5 Piece(s)
K-YPB M12A-M12A-S-PUR
Interconnection cable
Part no.:
50123263
- Suitable for: CML700i light curtains
- Interface: PROFIBUS DP
- Encoding: B-coded - B-coded - B-coded
- Application: Oil and lubricant resistant
| Suitable for | CML700i light curtains |
| Suitable for interface | PROFIBUS DP |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| No. of pins | 5 -pin |
| Encoding | B-coded |
| Version | Axial |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Female |
| No. of pins | 5 -pin |
| Encoding | B-coded |
| Version | Axial |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| No. of pins | 5 -pin |
| Encoding | B-coded |
| Version | Axial |
| Number of conductors | 2 Piece(s) |
| Sheathing color | Violet |
| Shielded | Yes |
| Silicone-free | Yes |
| Cable design | Distribution cable |
| Sheathing material | PUR |
| Wire insulation | PE |
| Suitability for drag chains | Yes |
| Traverse rate | Max. 5.5 m/s with horiz. traverse path of 5m and and max. acceleration of 10m/s² |
| Properties of the outer sheathing | Free of CFC, silicone and halogen |
| Bending cycles | 5,000,000 Piece(s) |
| Bending radius, flexible laying, min. | Min. 10 x cable diameter |
| Bending radius, stationary laying, min. | Min. 7.5 x cable diameter |
| Customs tariff number | 85444290 |
| ECLASS 5.1.4 | 27279201 |
| ECLASS 8.0 | 27279218 |
| ECLASS 9.0 | 27060311 |
| ECLASS 10.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 13.0 | 27060311 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
