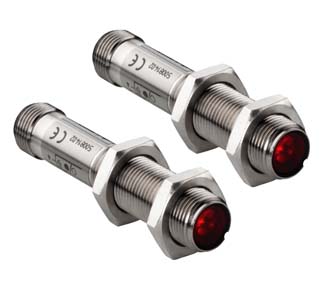

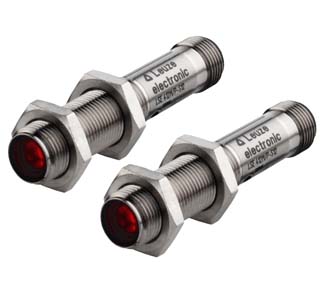

LS 412M/P

Throughbeam photoelectric sensor

Part no.: 50081432

Icon
Results list: 3 products found
LE412B/4
Throughbeam photoelectric sensor receiver
Part no.: 50140154
  • Series: 412B
  • Operating principle: Throughbeam principle
  • Switching frequency: 1,000 Hz
  • Connection: Cable
Part no.: 50140154
LE412B/P
Throughbeam photoelectric sensor receiver
Part no.: 50140155
  • Series: 412B
  • Operating principle: Throughbeam principle
  • Switching frequency: 1,000 Hz
  • Connection: Cable
Part no.: 50140155
LS412B/D
Throughbeam photoelectric sensor transmitter
Part no.: 50140153
  • Series: 412B
  • Operating principle: Throughbeam principle
  • Special version: Deactivation input
  • Light source: LED, Red
Part no.: 50140153
Series 412
Operating principle Throughbeam principle
Device type Set (transmitter and receiver)
Operating range 0 ... 6 m
Operating range limit 0 ... 8 m
Light source LED, Red
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 10 %, From UB
Open-circuit current 0 ... 20 mA
Number of digital switching outputs 1 Piece(s)
Switching element Transistor, PNP
Switching principle Light/dark reversible
Switching frequency 500 Hz
Response time 1 ms
Type of connection Cable
Cable length 2,000 mm
Number of conductors 4 -wire
Thread size M12 x 1 mm
Dimension (Ø x L) 12 mm x 55 mm
Housing material Metal
Metal housing Nickel-plated brass
Lens cover material Plastic
Net weight 120 g
Operational controls 270° potentiometer
Ambient temperature, operation -25 ... 55 °C
Degree of protection IP 67
Protection class III
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
Results list: 1 products found
BT D12M.5
Mounting bracket
Part no.: 50113549
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Stainless steel
Part no.: 50113549
