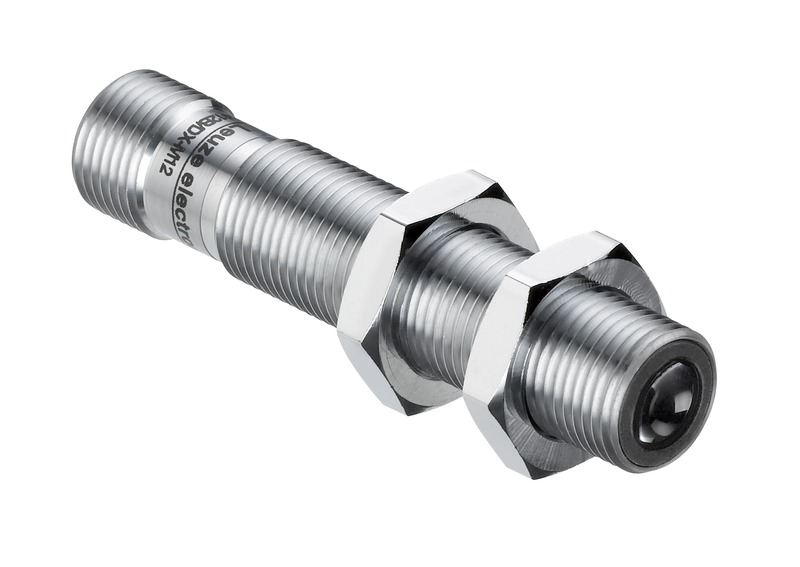

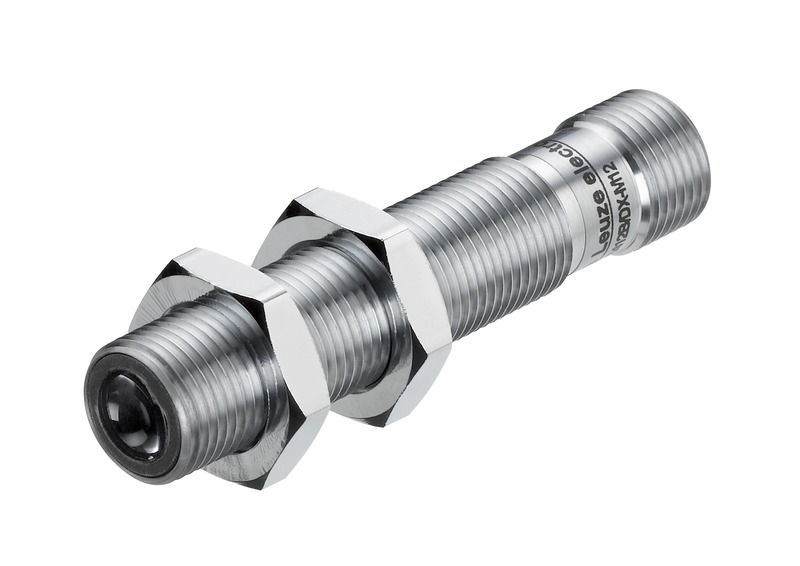

LS412B/DX-M12

Throughbeam photoelectric sensor transmitter

Part no.: 50140150

Icon Icon Icon Icon
Series 412B
Operating principle Throughbeam principle
Device type Transmitter
Special version Deactivation input
Operating range 0 ... 10 m
Operating range Guaranteed operating range
Operating range limit Typical operating range
Operating range limit 0 ... 10 m
Light source LED, Red
Wavelength 660 nm
LED group Exempt group (in acc. with EN 62471)
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 10 ... 36 V, DC, Incl. residual ripple
Residual ripple 0 ... 20 %, From UB
Open-circuit current 0 ... 15 mA
Number of deactivation inputs 1 Piece(s)
Function Signal IN
Voltage supply
Type of connection Connector
Thread size M12
Type Male
Material Metal
No. of pins 4 -pin
Encoding A-coded
Thread size M12 x 1 mm

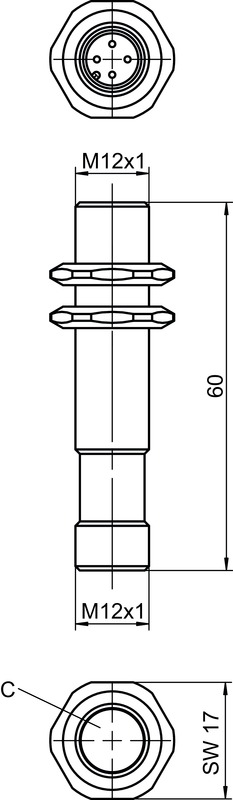

Dimension (Ø x L) 12 mm x 60 mm
Housing material Metal
Metal housing Chromed brass
Lens cover material Glass
Net weight 32 g
Housing color Silver
Ambient temperature, operation -25 ... 55 °C
Degree of protection IP 67
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ECLASS 13.0 27270901
ECLASS 14.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
ETIM 8.0 EC002716
ETIM 9.0 EC002716
