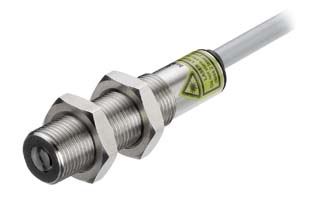

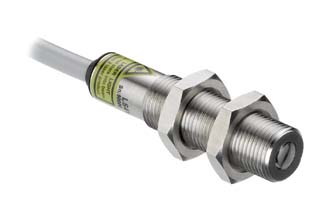

LS412BL2/D

Throughbeam photoelectric sensor transmitter

Part no.: 50140165

Icon Icon Icon Icon Icon
Series 412B
Operating principle Throughbeam principle
Device type Transmitter
Special version Deactivation input
Operating range 0 ... 50 m
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2014
Light spot size [at sensor distance] 2 mm [1,000 mm]
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 10 ... 36 V, DC, Incl. residual ripple
Residual ripple 0 ... 20 %, From UB
Open-circuit current 0 ... 10 mA
Number of deactivation inputs 1 Piece(s)
Type of connection Cable
Cable length 2,000 mm
Number of conductors 3 -wire
Thread size M12 x 1 mm
Dimension (Ø x L) 12 mm x 51 mm
Housing material Stainless steel
Stainless steel housing V2A
Lens cover material Glass
Net weight 100 g
Ambient temperature, operation -10 ... 50 °C
Degree of protection IP 67
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
