LSS 55.H2O,200-S12

Throughbeam photoelectric sensor transmitter

Part no.: 50127771

Icon Icon Icon Icon Icon
Series 55
Operating principle Throughbeam principle
Device type Transmitter
Application Detection of aqueous liquids (water sensor)
Special version All stainless steel housing
Operating range 0 ... 64 m
Operating range limit 0 ... 80 m
Light source LED, Infrared
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 20 mA
Type of connection Cable with connector
Cable length 200 mm
Thread size M12
Material Stainless steel
No. of pins 4 -pin
Dimension (W x H x L) 14 mm x 35.5 mm x 25 mm
Housing material Stainless steel
Stainless steel housing AISI 316L
Lens cover material Plastic with scratch-resistant Indium protective coating
Net weight 60 g
Type of fastening Through-hole mounting, Via optional mounting device
Compatibility of materials ECOLAB, CleanProof+
Ambient temperature, operation -30 ... 55 °C
Degree of protection IP 67, IP 69K
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
Results list: 2 products found

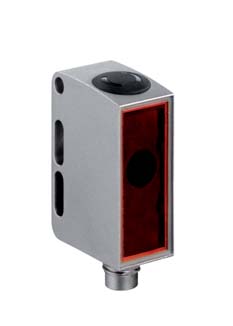

LSE 55/44.H2O,200-S12
Throughbeam photoelectric sensor receiver
Part no.: 50127772
  • Series: 55
  • Operating principle: Throughbeam principle
  • Application: Detection of aqueous liquids (water sensor)
  • Special version: All stainless steel housing
Part no.: 50127772
LSE 55/441.H2O,200-S12
Throughbeam photoelectric sensor receiver
Part no.: 50130550
  • Series: 55
  • Operating principle: Throughbeam principle
  • Application: Fill-level monitoring
  • Special version: All stainless steel housing
Part no.: 50130550

Filter

Results list: 21 products found
K-D M12A-4P-10m-FAB
Connection cable
Part no.: 50112960
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50112960
K-D M12A-4P-2m-FAB
Connection cable
Part no.: 50104570
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50104570
K-D M12A-4P-5m-FAB
Connection cable
Part no.: 50104572
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50104572

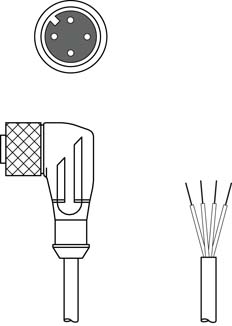

K-D M12W-4P-10m-FAB
