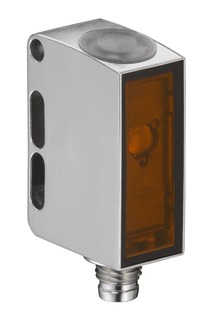

LSSR 55.8-S8

Throughbeam photoelectric sensor transmitter

Part no.: 50108715

Icon Icon Icon Icon Icon
Series 55
Operating principle Throughbeam principle
Device type Transmitter
Special version Activation input, All stainless steel housing
Operating range 0 ... 8.5 m
Operating range limit 0 ... 10 m
Light source LED, Red
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 18 mA
Number of activation inputs 1 Piece(s)
Type of connection Connector
Thread size M8
Material Stainless steel
No. of pins 4 -pin
Dimension (W x H x L) 14 mm x 35.5 mm x 25 mm
Housing material Stainless steel
Stainless steel housing AISI 316L
Lens cover material Plastic with scratch-resistant Indium protective coating
Net weight 40 g
Type of fastening Through-hole mounting, Via optional mounting device
Compatibility of materials ECOLAB, CleanProof+
Ambient temperature, operation -30 ... 55 °C
Degree of protection IP 67, IP 69K
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
