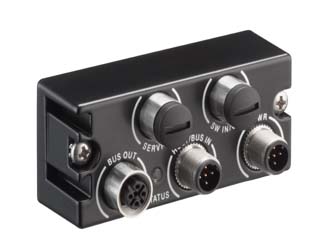

MS 34 105

Connection unit

Part no.: 50037231

Suitable for BCL 34, BPS 34
Type PROFIBUS DP, PROFIBUS DP
Type RS 232
Number of connections 5 Piece(s)
Function Service interface
Type of connection ConnectorConnectorConnector
Thread size M12
Type Female
Material Metal
No. of pins 8 -pin
Encoding A-coded
Function Signal IN, Signal OUT
Type of connection Connector
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding A-coded
Function PROFIBUS OUT
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding B-coded
Function PROFIBUS IN
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding B-coded
Function Voltage supply
Type of connection Connector
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding A-coded
Design Cubic
Dimension (W x H x L) 90 mm x 36 mm x 39 mm
Housing material Metal
Metal housing Diecast zinc
Net weight 160 g
Housing color Black
Type of display LED
Number of LEDs 1 Piece(s)
Degree of protection IP 65
Protection class III
Certifications c UL US
Customs tariff number 84733080
ECLASS 5.1.4 27280190
ECLASS 8.0 27280190
ECLASS 9.0 27279090
ECLASS 10.0 27280192
ECLASS 11.0 27280191
ECLASS 12.0 27280191
ETIM 5.0 EC002498
ETIM 6.0 EC003015
ETIM 7.0 EC003015
