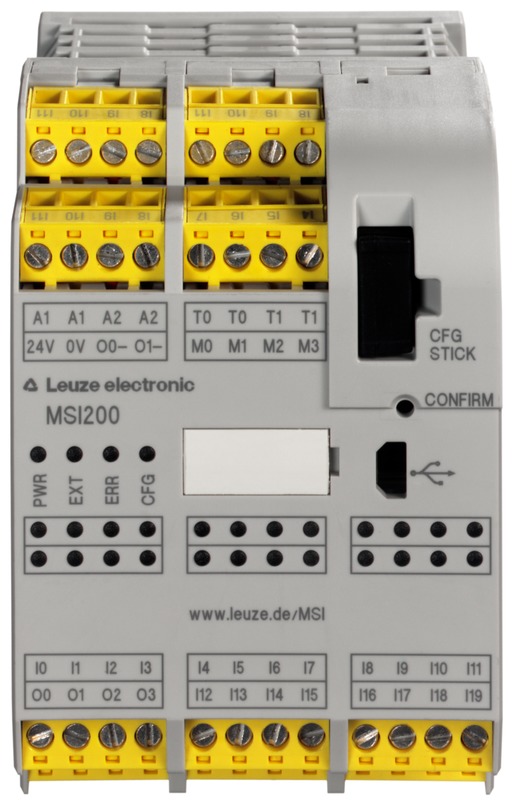

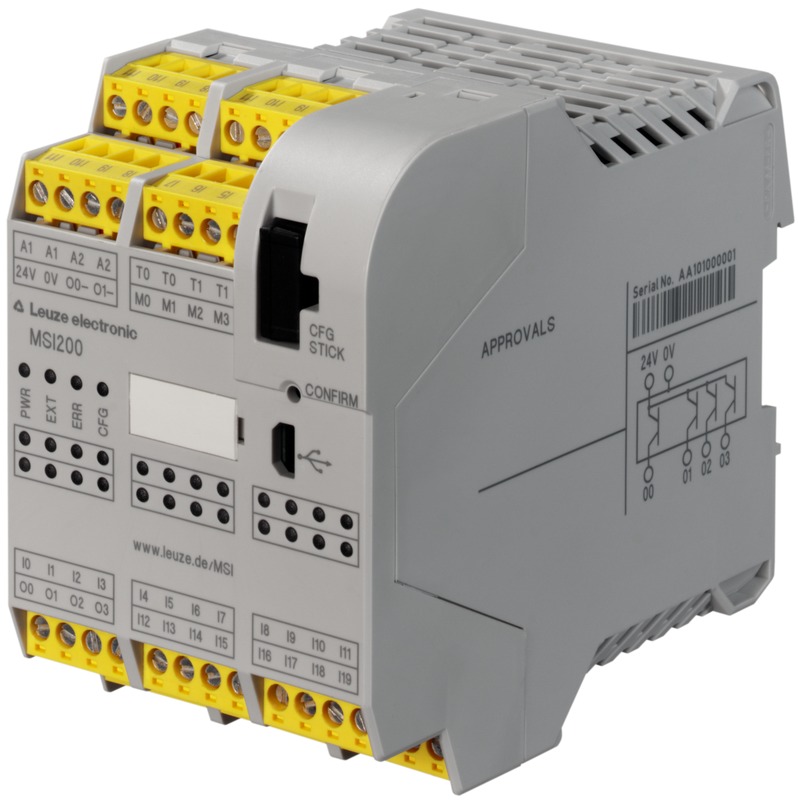

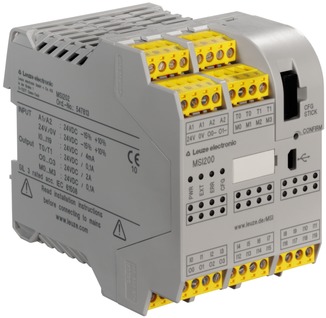

MSI 410-01
Safety control
Part no.: 50132984
  • Type: Safety control
  • Number of inputs: 20 Piece(s)
  • Number of outputs: 4 Piece(s)
  • Type of terminal: Screw terminal
Part no.: 50132984
Series MSI 200
Application Monitoring of safety functions
Number of safe I/Os 20 IN, 4 OUT
Functions Freely configurable safety main module, Monitoring of all safe functions in machines and systems, Safety-oriented expandability with additional input/output modules, Transfer of diagnostic data via MSI-FB fieldbus module (optional)
SIL 3, IEC 61508
SILCL 3, IEC/EN 62061
Performance Level (PL) e, EN ISO 13849-1
MTTFd 8,324 years, EN ISO 13849-1
PFHD 0.0000000137 per hour
PFHD 1.4E-08 per hour
Mission time 20 years, EN ISO 13849-1
Category 4, EN ISO 13849
Protective circuit Overvoltage protection, Short circuit protected
Supply voltage UB 24 V, DC, -15 ... 10 %
Current consumption (without load), max. 200 mA
Overvoltage category III
Diagnostics display 4 LEDs (green, red)
Reaction time, max. 30 ms
Nominal input voltage UN 24 V DC, -15 ... 10 %, (A1/A2)
Typ. current consumption at UN (A1/A2) 110 mA
Bridging of voltage drops 20 ms
Number of safe inputs 20 Piece(s), (up to SIL 3 / IEC 62061)
Status indicator 20 LEDs (green)
Nominal voltage UN 24 V DC, (to ground A1/A2)
Typ. current consumption at UN 4 mA
Signal level at "0", max. 5 V
Signal level at "1", min. 11 V
Number of signal outputs 4 Piece(s)
Number of safe semiconductor outputs 4 Piece(s), (Cat. 4 / EN ISO 13849-1 / EN 954)
Number of ground-switching outputs 2 Piece(s)
Number of cycle outputs 2 Piece(s)
Nominal voltage 24 V DC, -15 ... 10 %, (24 V / 0 V)
Status indicator 4 LEDs (green)
Limiting continuous current 2 A
Nominal voltage 24 V DC, (A1/A2)
Limiting continuous current 100 mA
Nominal voltage 24 V DC, (A1/A2)
Limiting continuous current 100 mA
Readiness delay 4,000 ms
Recovery time, restart, max. 5 ms
Type USB
Function Configuration via software
Number of connections 3 Piece(s)
Function Voltage supply, Connection to device, Signal IN, Signal OUT
Type of connection TerminalTBUS DIN rail
Type of terminal Screw terminal
No. of pins 40 -pin
Function Configuration interface
Type of connection USB
Connector type USB 2.0 Mini-A
Function Internal communication interface
Connection cross sections 0.2 to 2.5 mm²
Dimension (W x H x L) 67.5 mm x 99 mm x 114.5 mm
Housing material Plastic
Plastic housing Unreinforced polyamide PA
Net weight 430 g
Housing color Gray
Type of fastening Snap-on mounting
Number of possible safe extension modules 10 Piece(s)
Ambient temperature, operation -5 ... 45 °C
Ambient temperature, storage -20 ... 70 °C
Degree of protection IP 20 (housing), IP 20 (terminals)
Certifications c UL US, TÜV Rheinland
Customs tariff number 85371091
ECLASS 8.0 27371819
ECLASS 9.0 27371819
ECLASS 10.0 27371819
ETIM 5.0 EC001449
ETIM 6.0 EC001449
ETIM 7.0 EC001449
