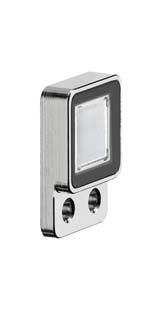

MTKS 7x7M.5

Reflector

Part no.: 50136823

Icon
Area of application Food and pharmaceutical
Design Rectangular
Triple reflector size 0.3 mm

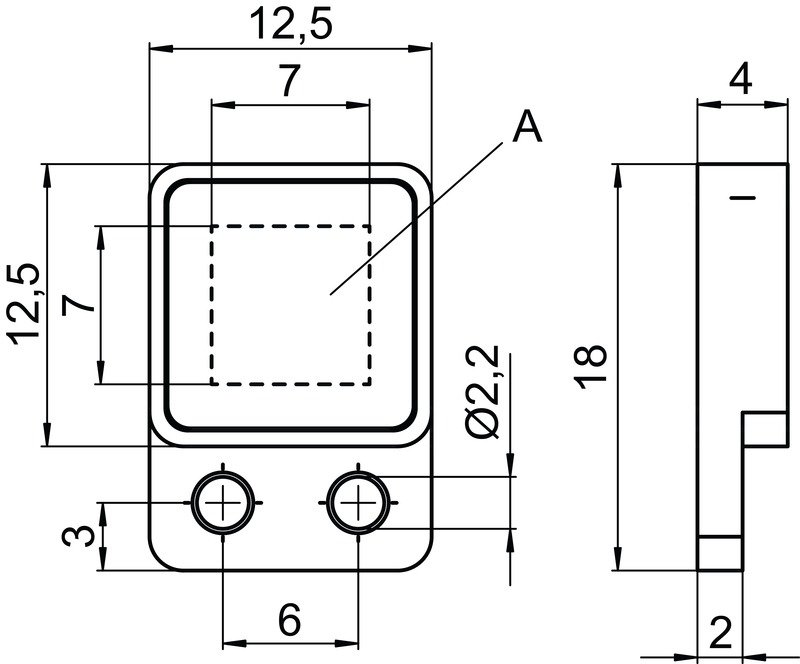

Mounting dimension, width 12.5 mm
Mounting dimension, height 18 mm
Mounting dimension, thickness 4 mm
Reflection surface height 7 mm
Reflection surface width 7 mm
Reflector material Plastic
Material of base material Stainless steel
Polarization-changing Yes
Structure, active surface Mikrotriple
Net weight 7.5 g
Type of fastening Through-hole mounting
Compatibility of materials Alcohol, CleanProof+, ECOLAB, H2O2
Ambient temperature, operation -40 ... 65 °C
Degree of protection IP 65, IP 67, IP 69K
Customs tariff number 73269098
ECLASS 5.1.4 27279203
ECLASS 8.0 27279203
ECLASS 9.0 27273601
ECLASS 10.0 27273601
ECLASS 11.0 27273601
ECLASS 12.0 27273601
ETIM 5.0 EC002467
ETIM 6.0 EC002467
ETIM 7.0 EC002467
