ODSL 8/V66-500-S12

Optical distance sensor

Part no.: 50101879

Icon Icon Icon Icon
Series 8
Type of scanning system Against object
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2007
Light spot size [at sensor distance] 2 mm x 6 mm
Measurement range 20 ... 500 mm
Resolution 0.1 ... 0.5 mm
Accuracy, short range 2 %
Accuracy, distant range 4 %
Reference value, accuracy Measurement distance
Repeatability, short range 1 %
Repeatability, distant range 3 %
Reference value repeatability Measurement distance
Measurement time 2 ... 7 ms
Referencing No
Black/white behavior 1.5 %
Optical distance measurement principle Triangulation
Supply voltage UB 18 ... 30 V, DC
Number of analog outputs 1 Piece(s)
Number of digital switching outputs 2 Piece(s)
Type Voltage
Switching element Transistor, Push-pull
Switching element Transistor, Push-pull
Type of connection Connector, Turning, 90°
Thread size M12
Material Metal
No. of pins 5 -pin
Dimension (W x H x L) 15 mm x 48 mm x 38 mm
Housing material Metal
Metal housing Diecast zinc
Lens cover material Glass
Net weight 70 g
Type of configuration Switch
Operational controls Rotary switch
Ambient temperature, operation -40 ... 50 °C
Ambient temperature, storage -40 ... 70 °C
Degree of protection IP 67
IP 69K
Protection class II
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 90318020
ECLASS 5.1.4 27270801
ECLASS 8.0 27270801
ECLASS 9.0 27270801
ECLASS 10.0 27270801
ECLASS 11.0 27270801
ECLASS 12.0 27270916
ECLASS 13.0 27270916
ETIM 5.0 EC001825
ETIM 6.0 EC001825
ETIM 7.0 EC001825
ETIM 8.0 EC001825
Filter
Results list: 10 products found
KD U-M12-5A-P1-020
Connection cable
Part no.: 50133839
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50133839
KD U-M12-5A-P1-050
Connection cable
Part no.: 50133841
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50133841
KD U-M12-5A-V1-020
Connection cable
Part no.: 50132077
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50132077
KD U-M12-5A-V1-050
Connection cable
Part no.: 50132079
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50132079
KD U-M12-5A-V1-100
Connection cable
Part no.: 50132080
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50132080
KD U-M12-5W-P1-020
Connection cable
Part no.: 50132536
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50132536
KD U-M12-5W-P1-050
Connection cable
Part no.: 50132537
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50132537
KD U-M12-5W-V1-020
Connection cable
Part no.: 50133842
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50133842
KD U-M12-5W-V1-050
Connection cable
Part no.: 50133802
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50133802
KD U-M12-5W-V1-100
Connection cable
Part no.: 50133803
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 5 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50133803
Filter
Results list: 2 products found
BT 300M.5
Mounting bracket
Part no.: 50118543
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Stainless steel
Part no.: 50118543

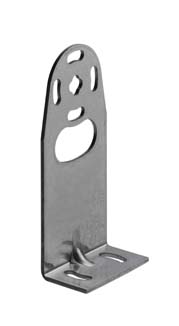

BT 8
Mounting device
Part no.: 50036195
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50036195
Filter
Results list: 1 products found
BTU 008M-D10
Mounting system
Part no.: 50127177
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Sheet-metal mounting
  • Mounting device material: Metal
Part no.: 50127177
Filter
Results list: 2 products found
BT 8-0
Mounting device
Part no.: 50036196
  • Design of mounting device: Mounting clamp
  • Type of fastening, at device: Clampable
  • Type of fastening, at system: Mounting thread
  • Mounting device material: Metal
Part no.: 50036196

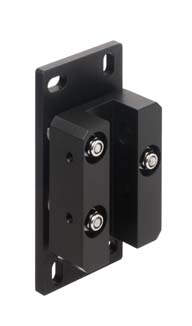

BT 8-ARH
