PRK 3B/6.2-S8.3

Polarized retro-reflective photoelectric sensor

Part no.: 50109385

Icon Icon
Results list: 1 products found
PRK3C.A3/4-M8.3
Polarized retro-reflective photoelectric sensor
Part no.: 50137056
  • Series: 3C
  • Operating principle: Reflection principle
  • Operating range, max.: 0 ... 4 m
  • Design: Cubic
Part no.: 50137056
Series 3B
Operating principle Reflection principle
Operating range 0 ... 4 m
Operating range limit 0 ... 5 m
Light source LED, Red
Protective circuit Polarity reversal protection
Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 18 mA
Number of digital switching outputs 1 Piece(s)
Switching element Transistor, Push-pull
Switching principle Light/dark switchable
Switching frequency 1,000 Hz
Response time 0.5 ms
Type of connection Connector
Thread size M8
Material Metal
No. of pins 3 -pin
Dimension (W x H x L) 11 mm x 32 mm x 17 mm
Housing material Plastic
Plastic housing PC-ABS
Lens cover material Plastic / PMMA
Net weight 10 g
Type of fastening Through-hole mounting
Operational controls Teach button
Ambient temperature, operation -30 ... 55 °C
Degree of protection IP 67
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 8.0 27270902
ECLASS 9.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
Filter
Results list: 30 products found
KD U-M8-3A-P1-020
Connection cable
Part no.: 50130842
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130842
KD U-M8-3A-P1-020-DP
Connection cable
Part no.: 50130886
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130886
KD U-M8-3A-P1-030
Connection cable
Part no.: 50130843
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130843
KD U-M8-3A-P1-050
Connection cable
Part no.: 50130844
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130844
KD U-M8-3A-P1-050-DP
Connection cable
Part no.: 50130887
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130887
KD U-M8-3A-P1-100
Connection cable
Part no.: 50130845
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130845
KD U-M8-3A-P1-150
Connection cable
Part no.: 50130846
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 15,000 mm
Part no.: 50130846
KD U-M8-3A-P1-200
Connection cable
Part no.: 50130847
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50130847
KD U-M8-3A-V1-020
Connection cable
Part no.: 50130837
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130837

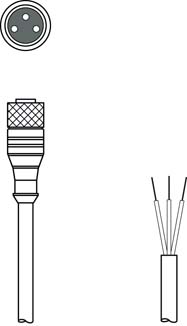

KD U-M8-3A-V1-020-DP
Connection cable
Part no.: 50130883
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130883
KD U-M8-3A-V1-030
Connection cable
Part no.: 50130838
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130838
KD U-M8-3A-V1-050
Connection cable
Part no.: 50130832
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130832
KD U-M8-3A-V1-050-DP
Connection cable
Part no.: 50130884
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130884
KD U-M8-3A-V1-100
Connection cable
Part no.: 50130839
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130839
KD U-M8-3A-V1-150
Connection cable
Part no.: 50130840
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 15,000 mm
Part no.: 50130840
KD U-M8-3A-V1-200
Connection cable
Part no.: 50130841
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50130841
KD U-M8-3W-P1-020
Connection cable
Part no.: 50130865
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130865
KD U-M8-3W-P1-020-DP
Connection cable
Part no.: 50130893
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130893
KD U-M8-3W-P1-030
Connection cable
Part no.: 50130866
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130866
KD U-M8-3W-P1-030-DP
Connection cable
Part no.: 50130894
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130894
KD U-M8-3W-P1-050
Connection cable
Part no.: 50130867
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130867
KD U-M8-3W-P1-050-DP
Connection cable
Part no.: 50130895
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130895
KD U-M8-3W-P1-100
Connection cable
Part no.: 50130868
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130868
KD U-M8-3W-V1-020
Connection cable
Part no.: 50130860
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130860

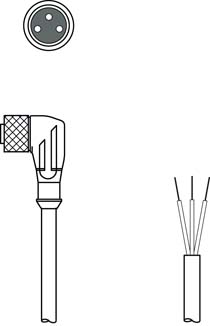

KD U-M8-3W-V1-020-DP
Connection cable
Part no.: 50130889
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130889
KD U-M8-3W-V1-030
Connection cable
Part no.: 50130861
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130861
KD U-M8-3W-V1-030-DP
Connection cable
Part no.: 50130890
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130890
KD U-M8-3W-V1-050
Connection cable
Part no.: 50130862
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130862
KD U-M8-3W-V1-050-DP
Connection cable
Part no.: 50130891
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130891
KD U-M8-3W-V1-100
Connection cable
Part no.: 50130863
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 3 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130863
Filter
Results list: 6 products found
KDS U-M8-3A-M12-3A-P1-020
Interconnection cable
Part no.: 50130931
  • Connection: Connector, M8  -  Connector, M12
  • Connection 01, version: Male
  • Connection 1, no. of pins: 3 Piece(s)
  • Connection 02, version: Axial, Female
Part no.: 50130931
KDS U-M8-3A-M12-3A-P1-050
Interconnection cable
Part no.: 50130932
  • Connection: Connector, M8  -  Connector, M12
  • Connection 01, version: Male
  • Connection 1, no. of pins: 3 Piece(s)
  • Connection 02, version: Axial, Female
Part no.: 50130932
KDS U-M8-3A-M8-3A-P1-020
Interconnection cable
Part no.: 50130905
  • Connection: Connector, M8  -  Connector, M8
  • Connection 01, version: Female
  • Connection 1, no. of pins: 3 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50130905
KDS U-M8-3A-M8-3A-P1-050
Interconnection cable
Part no.: 50130907
  • Connection: Connector, M8  -  Connector, M8
  • Connection 01, version: Female
  • Connection 1, no. of pins: 3 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50130907
KDS U-M8-3A-M8-3A-V1-020
Interconnection cable
Part no.: 50130900
  • Connection: Connector, M8  -  Connector, M8
  • Connection 01, version: Female
  • Connection 1, no. of pins: 3 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50130900
KDS U-M8-3W-M8-3A-P1-020
Interconnection cable
Part no.: 50130920
  • Connection: Connector, M8  -  Connector, M8
  • Connection 01, version: Female
  • Connection 1, no. of pins: 3 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50130920
Filter
Results list: 7 products found
BT 003M.1
Mounting device
Part no.: 50115197
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50115197
BT 205M
Mounting device
Part no.: 50139831
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
  • Suitable for product group: Switching sensors, cubic
Part no.: 50139831
BT 205M-10SET
Mounting device set
Part no.: 50124651
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50124651
BT 3
Mounting device
Part no.: 50060511
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50060511
BT 3.1
Mounting strap set
Part no.: 50105585
  • Design of mounting device: Retaining clip
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50105585
BT 3.2
Adapter plate
Part no.: 50103844
  • Design of mounting device: Mounting plate
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Mounting thread
  • Mounting device material: Metal
Part no.: 50103844
BT 3B
Mounting device
Part no.: 50105546
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50105546
Filter
Results list: 6 products found
BTP 200M-D10
Mounting system
Part no.: 50117830
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 10 mm rod
  • Mounting device material: Metal
Part no.: 50117830
BTP 200M-D12
Mounting system
Part no.: 50117829
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 12 mm rod
  • Mounting device material: Metal
Part no.: 50117829
BTP 200M-D14
Mounting system
Part no.: 50117828
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 14 mm rod
  • Mounting device material: Metal
Part no.: 50117828
BTU 200M-D10
Mounting system
Part no.: 50117256
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 10 mm rod
  • Mounting device material: Metal
Part no.: 50117256
BTU 200M-D12
Mounting system
Part no.: 50117255
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 12 mm rod
  • Mounting device material: Metal
Part no.: 50117255
BTU 200M-D14
Mounting system
Part no.: 50117254
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 14 mm rod
  • Mounting device material: Metal
Part no.: 50117254
Results list: 1 products found
BT 3.5
Mounting device
Part no.: 50111830
  • Design of mounting device: Retaining clip
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50111830
Filter
Results list: 5 products found
MTKS 20x30.1
Reflector
Part no.: 50134985
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting
  • Reflective surface, width: 18.5 mm
  • Reflective surface, height: 28.5 mm
Part no.: 50134985
TK 100x100
Reflector
Part no.: 50003192
  • Type of reflector: Reflector
  • Type of fastening: Rear side can be glued
  • Reflective surface, width: 96 mm
  • Reflective surface, height: 96 mm
Part no.: 50003192
TKS 100X100
Reflector
Part no.: 50022816
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting
  • Reflective surface, width: 96 mm
  • Reflective surface, height: 96 mm
Part no.: 50022816
TKS 20X40
Reflector
Part no.: 50081283
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting
  • Reflective surface, width: 16 mm
  • Reflective surface, height: 38 mm
Part no.: 50081283
TKS 40X60
Reflector
Part no.: 50040820
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting
  • Reflective surface, width: 37 mm
  • Reflective surface, height: 56 mm
Part no.: 50040820
Results list: 1 products found
REF 4-A-50x50
Reflective tape
Part no.: 50108300
  • Type of reflector: Reflective tape
  • Type of fastening: Self-adhesive
  • Reflective surface, width: 50 mm
  • Reflective surface, height: 50 mm
Part no.: 50108300
3D-CAD model - zip
EC declaration of conformity - pdf
Certificate - ECOLAB - pdf
