PRK 3B/66,200-S8

Polarized retro-reflective photoelectric sensor

Part no.: 50104695

Icon Icon
Results list: 1 products found

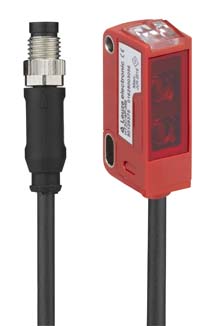

PRK3C/6G-200-M8
Polarized retro-reflective photoelectric sensor
Part no.: 50137157
  • Series: 3C
  • Operating principle: Reflection principle
  • Operating range, max.: 0.1 ... 5 m
  • Design: Cubic
Part no.: 50137157
Series 3B
Operating principle Reflection principle
Operating range 0.02 ... 5 m
Operating range limit 0.02 ... 6 m
Light source LED, Red
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 14 mA
Number of digital switching outputs 2 Piece(s)
Switching element Transistor, Push-pull
Switching principle Light switching (PNP)/dark switching (NPN)
Switching element Transistor, Push-pull
Switching principle Dark switching (PNP)/light switching (NPN)
Switching frequency 1,000 Hz
Response time 0.5 ms
Type of connection Cable with connector
Cable length 200 mm
Thread size M8
Material Metal
No. of pins 4 -pin
Dimension (W x H x L) 11 mm x 32 mm x 17 mm
Housing material Plastic
Plastic housing PC-ABS
Lens cover material Plastic / PMMA
Net weight 20 g
Type of fastening Through-hole mounting
Ambient temperature, operation -30 ... 55 °C
Degree of protection IP 67
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 8.0 27270902
ECLASS 9.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717

Filter

Results list: 23 products found
KD U-M8-4A-P1-020
Connection cable
Part no.: 50130854
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130854
KD U-M8-4A-P1-030
Connection cable
Part no.: 50130855
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130855
KD U-M8-4A-P1-050
Connection cable
Part no.: 50130856
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130856
KD U-M8-4A-P1-100
Connection cable
Part no.: 50130857
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130857
KD U-M8-4A-P1-150
Connection cable
Part no.: 50130858
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 15,000 mm
Part no.: 50130858
KD U-M8-4A-P1-200
Connection cable
Part no.: 50130859
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50130859
KD U-M8-4A-V1-020
Connection cable
Part no.: 50130848
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130848
KD U-M8-4A-V1-050
Connection cable
Part no.: 50130850
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130850
KD U-M8-4A-V1-100
Connection cable
Part no.: 50130851
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130851
KD U-M8-4A-V1-150
Connection cable
Part no.: 50130852
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 15,000 mm
Part no.: 50130852
KD U-M8-4A-V1-200
Connection cable
Part no.: 50130853
  • Connection: Connector, M8
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50130853
KD U-M8-4W-P1-020
Connection cable
Part no.: 50130873
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130873
KD U-M8-4W-P1-020-DP
Connection cable
Part no.: 50130880
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130880
KD U-M8-4W-P1-030
Connection cable
Part no.: 50130874
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130874
KD U-M8-4W-P1-050
Connection cable
Part no.: 50130875
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130875
KD U-M8-4W-P1-050-DP
Connection cable
Part no.: 50130881
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130881
KD U-M8-4W-P1-100
Connection cable
Part no.: 50130876
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130876
KD U-M8-4W-V1-020
Connection cable
Part no.: 50130869
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130869
KD U-M8-4W-V1-020-DP
Connection cable
Part no.: 50130877
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130877
KD U-M8-4W-V1-030
Connection cable
Part no.: 50130870
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 3,000 mm
Part no.: 50130870
KD U-M8-4W-V1-050
Connection cable
Part no.: 50130871
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130871
KD U-M8-4W-V1-050-DP
Connection cable
Part no.: 50130878
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130878
KD U-M8-4W-V1-100
Connection cable
Part no.: 50130872
  • Connection: Connector, M8
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130872
Results list: 1 products found
K-DS M8A-M12A-4P-0,3m-PVC
Interconnection cable
Part no.: 50107276
  • Connection: Connector, M8  -  Connector, M12
  • Connection 01, version: Female, Axial
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50107276

Filter

Results list: 7 products found
BT 003M.1
Mounting device
Part no.: 50115197
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50115197
BT 205M
Mounting device
Part no.: 50139831
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
  • Suitable for product group: Switching sensors, cubic
Part no.: 50139831
BT 205M-10SET
Mounting device set
Part no.: 50124651
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50124651
BT 3
Mounting device
Part no.: 50060511
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50060511
BT 3.1
Mounting strap set
Part no.: 50105585
  • Design of mounting device: Retaining clip
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50105585
BT 3.2
Adapter plate
Part no.: 50103844
  • Design of mounting device: Mounting plate
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Mounting thread
  • Mounting device material: Metal
Part no.: 50103844
BT 3B
Mounting device
Part no.: 50105546
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50105546

Filter

Results list: 6 products found
BTP 200M-D10
Mounting system
Part no.: 50117830
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 10 mm rod
  • Mounting device material: Metal
Part no.: 50117830
BTP 200M-D12
Mounting system
Part no.: 50117829
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 12 mm rod
  • Mounting device material: Metal
Part no.: 50117829
BTP 200M-D14
Mounting system
Part no.: 50117828
  • Design of mounting device: Protection hood
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: For 14 mm rod
  • Mounting device material: Metal
Part no.: 50117828
BTU 200M-D10
Mounting system
Part no.: 50117256
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type, Suited for M3 screws
  • Type of fastening, at system: For 10 mm rod, Sheet-metal mounting
  • Mounting device material: Metal
Part no.: 50117256
BTU 200M-D12
Mounting system
Part no.: 50117255
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type, Suited for M3 screws
  • Type of fastening, at system: For 12 mm rod, Sheet-metal mounting
  • Mounting device material: Metal
Part no.: 50117255
BTU 200M-D14
Mounting system
Part no.: 50117254
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type, Suited for M3 screws
  • Type of fastening, at system: For 14 mm rod, Sheet-metal mounting
  • Mounting device material: Metal
Part no.: 50117254
Results list: 1 products found
BT 3.5
Mounting device
Part no.: 50111830
  • Design of mounting device: Retaining clip
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Metal
Part no.: 50111830

Filter

Results list: 5 products found
MTKS 20x30.1
Reflector
Part no.: 50134985
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 18.5 mm
  • Reflection surface height: 28.5 mm
Part no.: 50134985
TK 100x100
Reflector
Part no.: 50003192
  • Type of reflector: Reflector
  • Type of fastening: Rear side can be glued
  • Reflection surface width: 96 mm
  • Reflection surface height: 96 mm
Part no.: 50003192
TKS 100X100
Reflector
Part no.: 50022816
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 96 mm
  • Reflection surface height: 96 mm
Part no.: 50022816
TKS 20X40
Reflector
Part no.: 50081283
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 16 mm
  • Reflection surface height: 38 mm
Part no.: 50081283
TKS 40X60
Reflector
Part no.: 50040820
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 37 mm
  • Reflection surface height: 56 mm
Part no.: 50040820
Results list: 1 products found
REF 4-A-50x50
Reflective tape
Part no.: 50108300
  • Type of reflector: Reflective tape
  • Type of fastening: Self-adhesive
  • Reflection surface width: 50 mm
  • Reflection surface height: 50 mm
Part no.: 50108300
3D-CAD model - zip
Declaration of Conformity - pdf
Certificate - ECOLAB - pdf
