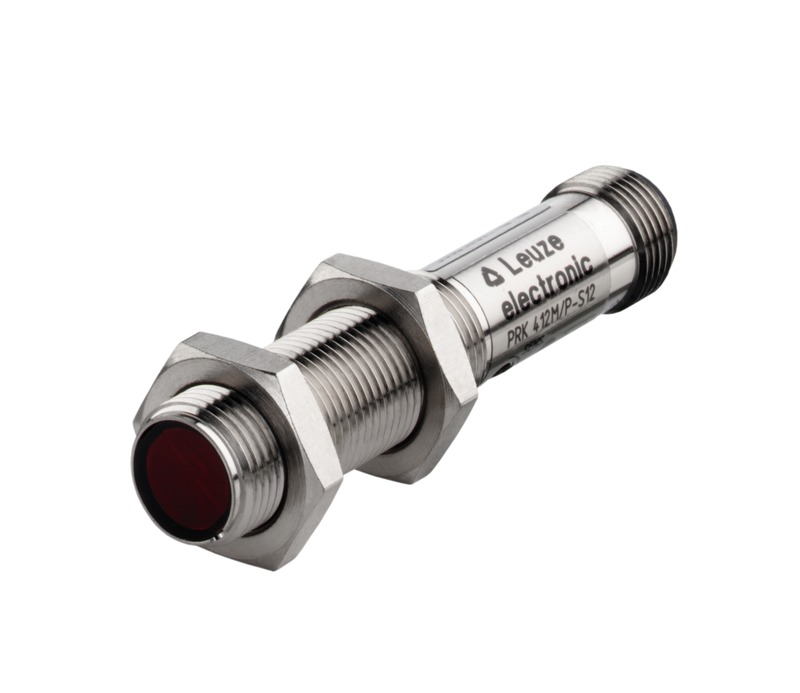

PRK 412M/P

Polarized retro-reflective photoelectric sensor

Part no.: 50081408

Icon
Results list: 2 products found
PRK412B/4
Polarized retro-reflective photoelectric sensor
Part no.: 50140144
  • Series: 412B
  • Operating principle: Reflection principle
  • Operating range, max.: 0.02 ... 1.8 m
  • Design: Cylindrical
Part no.: 50140144
PRK412B/P
Polarized retro-reflective photoelectric sensor
Part no.: 50140145
  • Series: 412B
  • Operating principle: Reflection principle
  • Operating range, max.: 0.02 ... 1.8 m
  • Design: Cylindrical
Part no.: 50140145
Series 412
Operating principle Reflection principle
Operating range 0.15 ... 1.3 m
Operating range limit 0.15 ... 1.6 m
Light source LED, Red
Protective circuit Polarity reversal protection, Short circuit protected
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 10 %, From UB
Open-circuit current 0 ... 20 mA
Number of digital switching outputs 1 Piece(s)
Switching element Transistor, PNP
Switching principle Light/dark reversible
Switching frequency 700 Hz
Response time 0.7 ms
Type of connection Cable
Cable length 2,000 mm
Number of conductors 4 -wire
Thread size M12 x 1 mm
Dimension (Ø x L) 12 mm x 55 mm
Housing material Metal
Metal housing Nickel-plated brass
Lens cover material Plastic
Net weight 60 g
Operational controls 270° potentiometer
Ambient temperature, operation -25 ... 55 °C
Degree of protection IP 67
Protection class III
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 8.0 27270902
ECLASS 9.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
Results list: 1 products found
BT D12M.5
Mounting bracket
Part no.: 50113549
  • Design of mounting device: Angle, L-shape
  • Type of fastening, at device: Screw type
  • Type of fastening, at system: Through-hole mounting
  • Mounting device material: Stainless steel
Part no.: 50113549

Filter

Results list: 7 products found
MTKS 20x30.1
Reflector
Part no.: 50134985
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 18.5 mm
  • Reflection surface height: 28.5 mm
Part no.: 50134985
TK 100x100
Reflector
Part no.: 50003192
  • Type of reflector: Reflector
  • Type of fastening: Rear side can be glued
  • Reflection surface width: 96 mm
  • Reflection surface height: 96 mm
Part no.: 50003192
TK 30x50
Reflector
Part no.: 50003189
  • Type of reflector: Reflector
  • Type of fastening: Rear side can be glued
  • Reflection surface width: 29 mm
  • Reflection surface height: 45 mm
Part no.: 50003189
TKS 100X100
Reflector
Part no.: 50022816
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 96 mm
  • Reflection surface height: 96 mm
Part no.: 50022816
TKS 20X40
Reflector
Part no.: 50081283
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 16 mm
  • Reflection surface height: 38 mm
Part no.: 50081283
TKS 30X50
Reflector
Part no.: 50023525
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 27 mm
  • Reflection surface height: 44 mm
Part no.: 50023525
TKS 40X60
Reflector
Part no.: 50040820
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 37 mm
  • Reflection surface height: 56 mm
Part no.: 50040820

Filter

Results list: 2 products found
REF 4-A-100x100
Reflective tape
Part no.: 50106119
  • Type of reflector: Reflective tape
  • Type of fastening: Self-adhesive
  • Reflection surface width: 100 mm
  • Reflection surface height: 100 mm
Part no.: 50106119
REF 4-A-50x50
Reflective tape
Part no.: 50108300
  • Type of reflector: Reflective tape
  • Type of fastening: Self-adhesive
  • Reflection surface width: 50 mm
  • Reflection surface height: 50 mm
Part no.: 50108300
