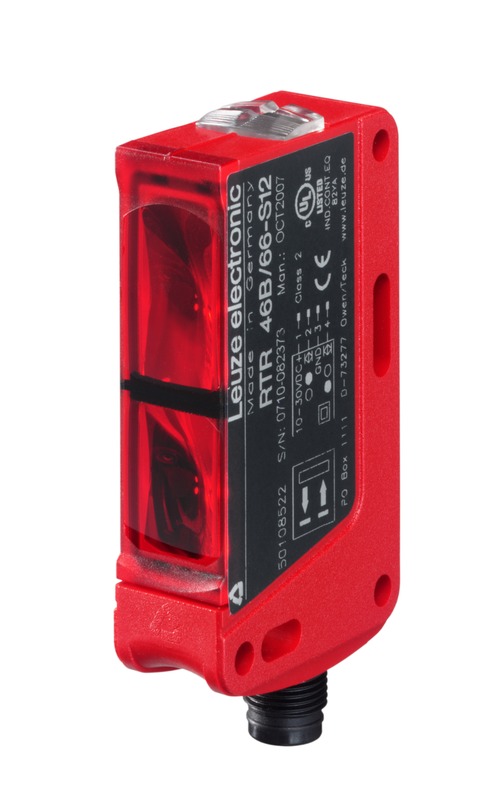

RTR 46B/66-S12

Energetic diffuse sensor

Part no.: 50108522

Results list: 1 products found

HT46C/4P-M12

Diffuse sensor with background suppression

Part no.: 50127048

Series: 46C
Operating principle: Diffuse reflection principle with background suppr...
Operating range, max.: 0.005 ... 3 m
Design: Cubic

Part no.: 50127048

Series	46B
Operating principle	Diffuse reflection principle

Operating range	0.01 ... 0.8 m
Operating range limit	0.01 ... 1.1 m
Light source	LED, Red

Protective circuit

Polarity reversal protection, Short circuit protected

Supply voltage U_B	10 ... 30 V, DC
Residual ripple	0 ... 15 %, From U_B
Open-circuit current	0 ... 30 mA

Number of digital switching outputs

2 Piece(s)

Switching element	Transistor, Push-pull
Switching principle	Light switching

Switching element	Transistor, Push-pull
Switching principle	Dark switching

Switching frequency	500 Hz
Response time	1 ms

Type of connection	Connector
Thread size	M12
Material	Plastic
No. of pins	4 -pin

Dimension (W x H x L)	18.5 mm x 76.9 mm x 43.4 mm
Housing material	Plastic
Lens cover material	Plastic
Net weight	50 g
Type of fastening	Through-hole mounting
Compatibility of materials	ECOLAB

Operational controls

270° potentiometer

Ambient temperature, operation

-30 ... 60 °C

Degree of protection	IP 67
Protection class	II
Certifications	c UL US
Standards applied	IEC 60947-5-2

Customs tariff number	85365019
ECLASS 8.0	27270903
ECLASS 9.0	27270903
ETIM 5.0	EC001821
ETIM 6.0	EC001821

Results list: 20 products found

KD U-M12-4A-P1-020

Connection cable

Part no.: 50130654

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130654

KD U-M12-4A-P1-020-DP

Connection cable

Part no.: 50130672

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130672

KD U-M12-4A-P1-050

Connection cable

Part no.: 50130657

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130657

KD U-M12-4A-P1-050-DP

Connection cable

Part no.: 50130675

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130675

KD U-M12-4A-P1-100

Connection cable

Part no.: 50130658

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130658

KD U-M12-4A-P1-100-DP

Connection cable

Part no.: 50130676

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130676

KD U-M12-4A-V1-020

Connection cable

Part no.: 50130648

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130648

KD U-M12-4A-V1-050

Connection cable

Part no.: 50130652

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130652

KD U-M12-4A-V1-100

Connection cable

Part no.: 50130653

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130653

KD U-M12-4A-V1-200

Connection cable

Part no.: 50132431

Connection: Connector, M12
Version: Axial, Female
No. of pins: 4 Piece(s)
Cable length: 20,000 mm

Part no.: 50132431

KD U-M12-4W-P1-020

Connection cable

Part no.: 50130692

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130692

KD U-M12-4W-P1-020-DP

Connection cable

Part no.: 50130718

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130718

KD U-M12-4W-P1-050

Connection cable

Part no.: 50130694

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130694

KD U-M12-4W-P1-050-DP

Connection cable

Part no.: 50130720

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130720

KD U-M12-4W-P1-100

Connection cable

Part no.: 50130695

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130695

KD U-M12-4W-P1-100-DP

Connection cable

Part no.: 50130721

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130721

KD U-M12-4W-V1-020

Connection cable

Part no.: 50130688

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 2,000 mm

Part no.: 50130688

KD U-M12-4W-V1-050

Connection cable

Part no.: 50130690

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 5,000 mm

Part no.: 50130690

KD U-M12-4W-V1-100

Connection cable

Part no.: 50130691

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 10,000 mm

Part no.: 50130691

KD U-M12-4W-V1-200

Connection cable

Part no.: 50132641

Connection: Connector, M12
Version: Angled, Female
No. of pins: 4 Piece(s)
Cable length: 20,000 mm

Part no.: 50132641

Results list: 4 products found

KDS U-M12-4A-M12-4A-V1-020

Interconnection cable

Part no.: 50132438

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female, Axial
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132438

KDS U-M12-4A-M12-4A-V1-050

Interconnection cable

Part no.: 50132439

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female, Axial
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132439

KDS U-M12-4A-M12-4A-V1-100

Interconnection cable

Part no.: 50132440

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female, Axial
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132440

KDS U-M12-4A-M12-4A-V1-200

Interconnection cable

Part no.: 50132441

Connection: Connector, M12 - Connector, M12
Connection 01, version: Female, Axial
Connection 1, no. of pins: 4 Piece(s)
Connection 02, version: Axial, Male

Part no.: 50132441

Results list: 1 products found

BT 46

Mounting device

Part no.: 50105315

Design of mounting device: Angle, L-shape
Type of fastening, at device: Screw type
Type of fastening, at system: Through-hole mounting
Mounting device material: Metal

Part no.: 50105315

Results list: 1 products found

SG 46

Protective screen

Part no.: 50117243

Suitable for: 46B series sensors

Part no.: 50117243
