SET IPRK 25B/4.3+BTU200M-D10

Polarized retro-reflective photoelectric sensor set

Part no.: 50130239

Icon
Results list: 1 products found

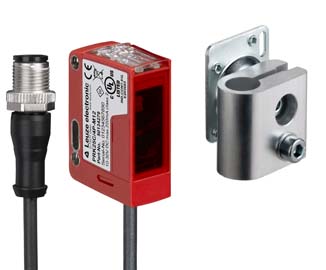

Set PRK25C.D/4W+BTU200M-D10
Polarized retro-reflective photoelectric sensor set
Part no.: 50138510
  • Series: 25C
  • Operating principle: Reflection principle
  • Operating range, max.: 0.05 ... 8 m
  • Design: Cubic
Part no.: 50138510
Series 25B
Operating principle Reflection principle
Contains 1x BTU 200M-D10
Application Detection of stretch-wrapped objects
Special version Article set, Warning output
Operating range 0.05 ... 6 m
Operating range limit 0.05 ... 8 m
Light source LED, Red
Protective circuit Short circuit protected, Polarity reversal protection
Supply voltage UB 10 ... 30 V, DC
Residual ripple 0 ... 15 %, From UB
Open-circuit current 0 ... 35 mA
Number of digital switching outputs 2 Piece(s)
Switching element Transistor, PNP
Switching principle Light switching
Switching element Transistor, PNP
Switching principle UB switching
Function Warning output
Switching frequency 500 Hz
Response time 1 ms
Type of connection Cable with connector
Cable length 200 mm
Thread size M12
Material Metal
No. of pins 4 -pin
Dimension (W x H x L) 15 mm x 38.9 mm x 28.7 mm
Housing material Plastic
Plastic housing PC-ABS
Lens cover material Plastic / PMMA
Net weight 30 g
Type of fastening Through-hole mounting, Via optional mounting device
Ambient temperature, operation -30 ... 55 °C
Degree of protection IP 66, IP 67
Protection class II
Standards applied IEC 60947-5-2
Customs tariff number 85365019
ECLASS 8.0 27270902
ECLASS 9.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
Results list: 2 products found
BTU 200M-D10
Mounting system
Part no.: 50117256
  • Design of mounting device: Mounting system
  • Type of fastening, at device: Screw type, Suited for M3 screws
  • Type of fastening, at system: For 10 mm rod, Sheet-metal mounting
  • Mounting device material: Metal
Part no.: 50117256
IPRK 25B/4.3,200-S12
Polarized retro-reflective photoelectric sensor
Part no.: 50108111
  • Series: 25B
  • Operating principle: Reflection principle
  • Operating range, max.: 0.05 ... 6 m
  • Design: Cubic
Part no.: 50108111

Filter

Results list: 21 products found
K-D M12A-4P-10m-FAB
Connection cable
Part no.: 50112960
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50112960
K-D M12A-4P-2m-FAB
Connection cable
Part no.: 50104570
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50104570
K-D M12A-4P-5m-FAB
Connection cable
Part no.: 50104572
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50104572
K-D M12W-4P-10m-FAB
Connection cable
Part no.: 50112961
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50112961
K-D M12W-4P-2m-FAB
Connection cable
Part no.: 50104571
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50104571
K-D M12W-4P-5m-FAB
Connection cable
Part no.: 50104573
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50104573
KD U-M12-4A-P1-020
Connection cable
Part no.: 50130654
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130654
KD U-M12-4A-P1-050
Connection cable
Part no.: 50130657
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130657
KD U-M12-4A-P1-100
Connection cable
Part no.: 50130658
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130658
KD U-M12-4A-V1-020
Connection cable
Part no.: 50130648
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130648
KD U-M12-4A-V1-050
Connection cable
Part no.: 50130652
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130652
KD U-M12-4A-V1-100
Connection cable
Part no.: 50130653
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130653
KD U-M12-4A-V1-200
Connection cable
Part no.: 50132431
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50132431
KD U-M12-4A-V1-300
Connection cable
Part no.: 50132430
  • Connection: Connector, M12
  • Version: Axial, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 30,000 mm
Part no.: 50132430
KD U-M12-4W-P1-020
Connection cable
Part no.: 50130692
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130692
KD U-M12-4W-P1-050
Connection cable
Part no.: 50130694
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130694
KD U-M12-4W-P1-100
Connection cable
Part no.: 50130695
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130695
KD U-M12-4W-V1-020
Connection cable
Part no.: 50130688
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 2,000 mm
Part no.: 50130688
KD U-M12-4W-V1-050
Connection cable
Part no.: 50130690
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 5,000 mm
Part no.: 50130690
KD U-M12-4W-V1-100
Connection cable
Part no.: 50130691
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 10,000 mm
Part no.: 50130691
KD U-M12-4W-V1-200
Connection cable
Part no.: 50132641
  • Connection: Connector, M12
  • Version: Angled, Female
  • No. of pins: 4 Piece(s)
  • Cable length: 20,000 mm
Part no.: 50132641

Filter

Results list: 5 products found
K-DS M12A-M8A-4P-0,3m-PVC
Interconnection cable
Part no.: 50116738
  • Connection: Connector, M12  -  Connector, M8
  • Connection 01, version: Female, Axial
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50116738
KDS U-M12-4A-M12-4A-V1-020
Interconnection cable
Part no.: 50132438
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female, Axial
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132438
KDS U-M12-4A-M12-4A-V1-050
Interconnection cable
Part no.: 50132439
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female, Axial
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132439
KDS U-M12-4A-M12-4A-V1-100
Interconnection cable
Part no.: 50132440
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female, Axial
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132440
KDS U-M12-4A-M12-4A-V1-200
Interconnection cable
Part no.: 50132441
  • Connection: Connector, M12  -  Connector, M12
  • Connection 01, version: Female, Axial
  • Connection 1, no. of pins: 4 Piece(s)
  • Connection 02, version: Axial, Male
Part no.: 50132441

Filter

Results list: 5 products found
MTKS 20x30.1
Reflector
Part no.: 50134985
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 18.5 mm
  • Reflection surface height: 28.5 mm
Part no.: 50134985
TK 100x100
Reflector
Part no.: 50003192
  • Type of reflector: Reflector
  • Type of fastening: Rear side can be glued
  • Reflection surface width: 96 mm
  • Reflection surface height: 96 mm
Part no.: 50003192
TKS 100X100
Reflector
Part no.: 50022816
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 96 mm
  • Reflection surface height: 96 mm
Part no.: 50022816
TKS 20X40
Reflector
Part no.: 50081283
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 16 mm
  • Reflection surface height: 38 mm
Part no.: 50081283
TKS 40X60
Reflector
Part no.: 50040820
  • Type of reflector: Reflector
  • Type of fastening: Through-hole mounting, Adhesive
  • Reflection surface width: 37 mm
  • Reflection surface height: 56 mm
Part no.: 50040820
Results list: 1 products found
REF 4-A-50x50
Reflective tape
Part no.: 50108300
  • Type of reflector: Reflective tape
  • Type of fastening: Self-adhesive
  • Reflection surface width: 50 mm
  • Reflection surface height: 50 mm
Part no.: 50108300
