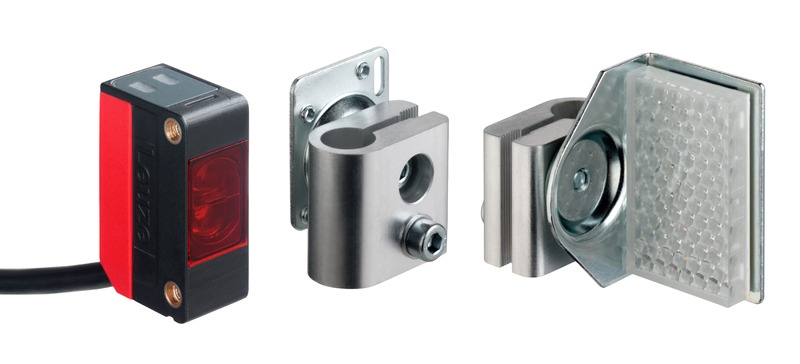

SET PRK5+BTU200M+BTU934M
Polarized retro-reflective photoelectric sensor set
Part no.:
50125840
Results list: 3 products found
PRK5B/4X-200-M12
Polarized retro-reflective photoelectric sensor
Part no.:
50145248
- Series: 5B
- Operating principle: Reflection principle
- Operating range, max.: 0.02 ... 5 m
- Design: Cubic
BTU 934M-D14-90
Reflector
Part no.:
50120010
- Design of mounting device: Mounting system
- Type of fastening, at device: Pre-mounted reflector
- Type of fastening, at system: Sheet-metal mounting
- Mounting device material: Metal
BTU 200M-D14
Mounting system
Part no.:
50117254
- Design of mounting device: Mounting system
- Type of fastening, at device: Screw type
- Type of fastening, at system: For 14 mm rod
- Mounting device material: Metal
| Series | 5 |
| Operating principle | Reflection principle |
| Contains | 2x M3 x 8 screw |
| Pre-mounted on | Mounting system |
| Special version | Article set |
| Operating range | 0.02 ... 1.8 m, With reflector TK(S) 100x100 |
| Operating range | Guaranteed operating range |
| Operating range limit | 0.02 ... 2.4 m, With reflector TK(S) 100x100 |
| Operating range limit | Typical operating range |
| Light source | LED, Red |
| Wavelength | 620 nm |
| LED group | Exempt group (in acc. with EN 62471) |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
| Switching element | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Readiness delay | 300 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Lens cover material | Plastic |
| Net weight | 177 g |
| Housing color | Black Red |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
| Protection class | III |
| Approvals | c UL US |
| Standards applied | IEC 60947-5-2 |
| Customs tariff number | 85365019 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 13.0 | 27270902 |
| ECLASS 14.0 | 27270902 |
| ECLASS 15.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 9.0 | EC002717 |
| ETIM 10.0 | EC002717 |
