TFM 08 1610.210

Transponder

Part no.: 50114962

Icon Icon
Results list: 1 products found

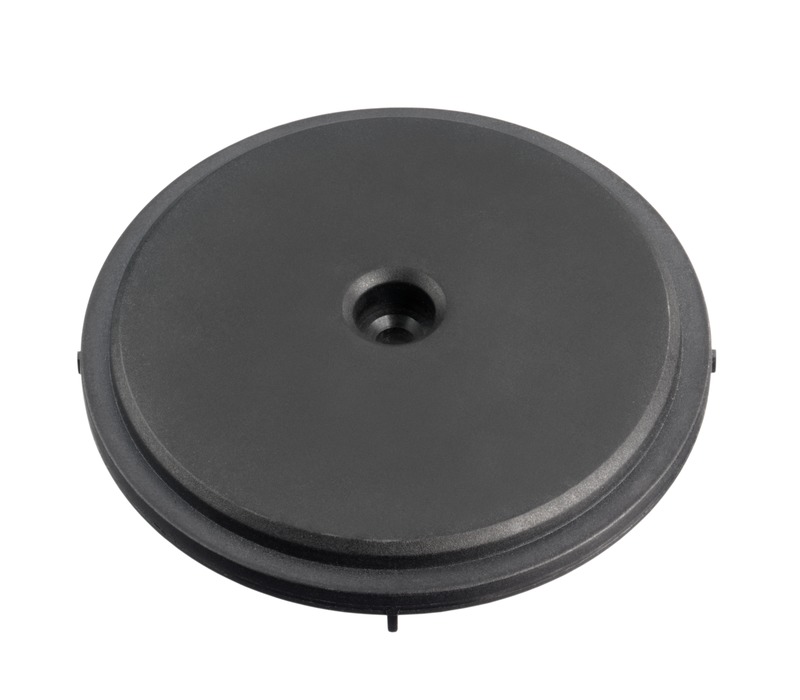

TFM 05 1625.210
Transponder
Part no.: 50141658
  • Series: TFM
  • Working frequency: 13.56 MHz
  • Suitable for: RFM
  • Ambient temperature, operation, max.: -25 ... 150 °C
Part no.: 50141658
Series TFM
Suitable for RFM
Chip I-CodeSLI
Working frequency 13.56 MHz
Memory size 112 B
Memory block 28 Piece(s)
Standards applied ISO 15693
Degree of protection IP 68

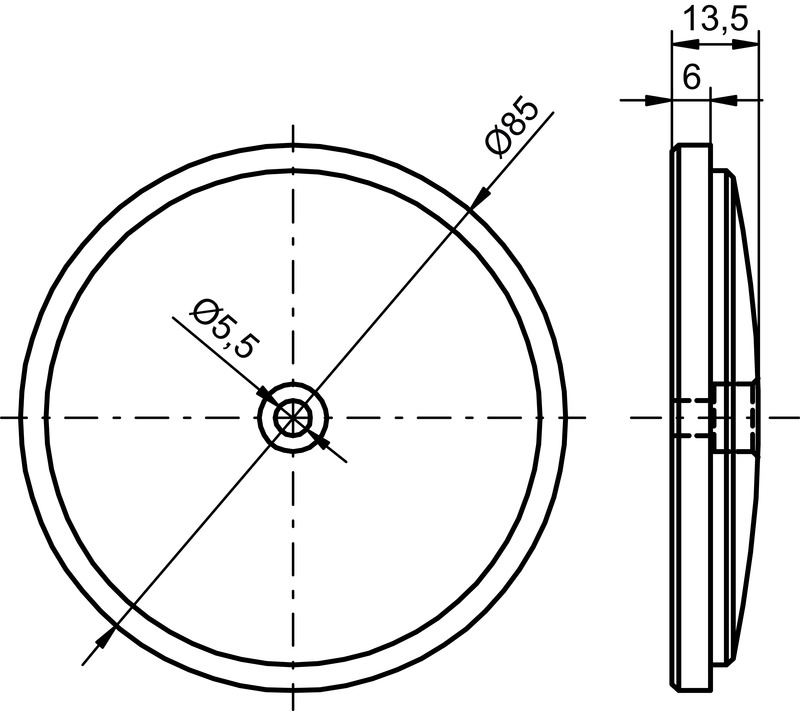

Design Disc
Thickness 13.5 mm
Outer diameter 85 mm
Inner diameter 5.5 mm
Housing material Plastic
Plastic housing PPS
Net weight 50 g
Ambient temperature, operation -25 ... 100 °C
Ambient temperature, storage -25 ... 120 °C
Ambient temperature, storage, time-limited Up to + 200°C = 4000 h or 3000 cycles (of 40 minutes and > 1.5 h of passive cooling), up to + 220°C = 1000 h or 1500 cycles (of 30 minutes and > 2 h of passive cooling)
Customs tariff number 85235200
ECLASS 8.0 27289290
ECLASS 9.0 27280402
ETIM 5.0 EC002996
ETIM 6.0 EC002996
Results list: 1 products found
BT TFM 08 1610.210
Mounting bracket
Part no.: 50134764
  • Suitable for: RFI
Part no.: 50134764
